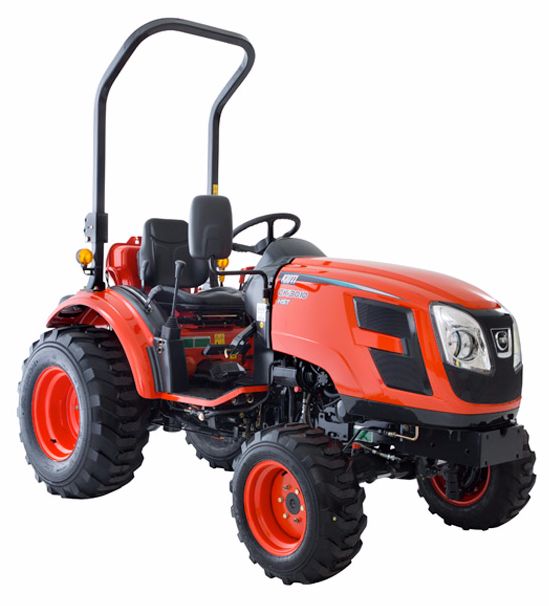

CK3310 HST

The CK3310 HST has been equipped with a performance proven, heavy-duty HST drive unit to handle the increased horsepower of this stylish new compact Kioti tractor. Single pedal controls make changing between forward and reverse easy without clutching or hand shifting and the operators hands remain free for steering and implement control.



Standard features:

• 4WD
• 3 point linkage with PTO
• Power steering

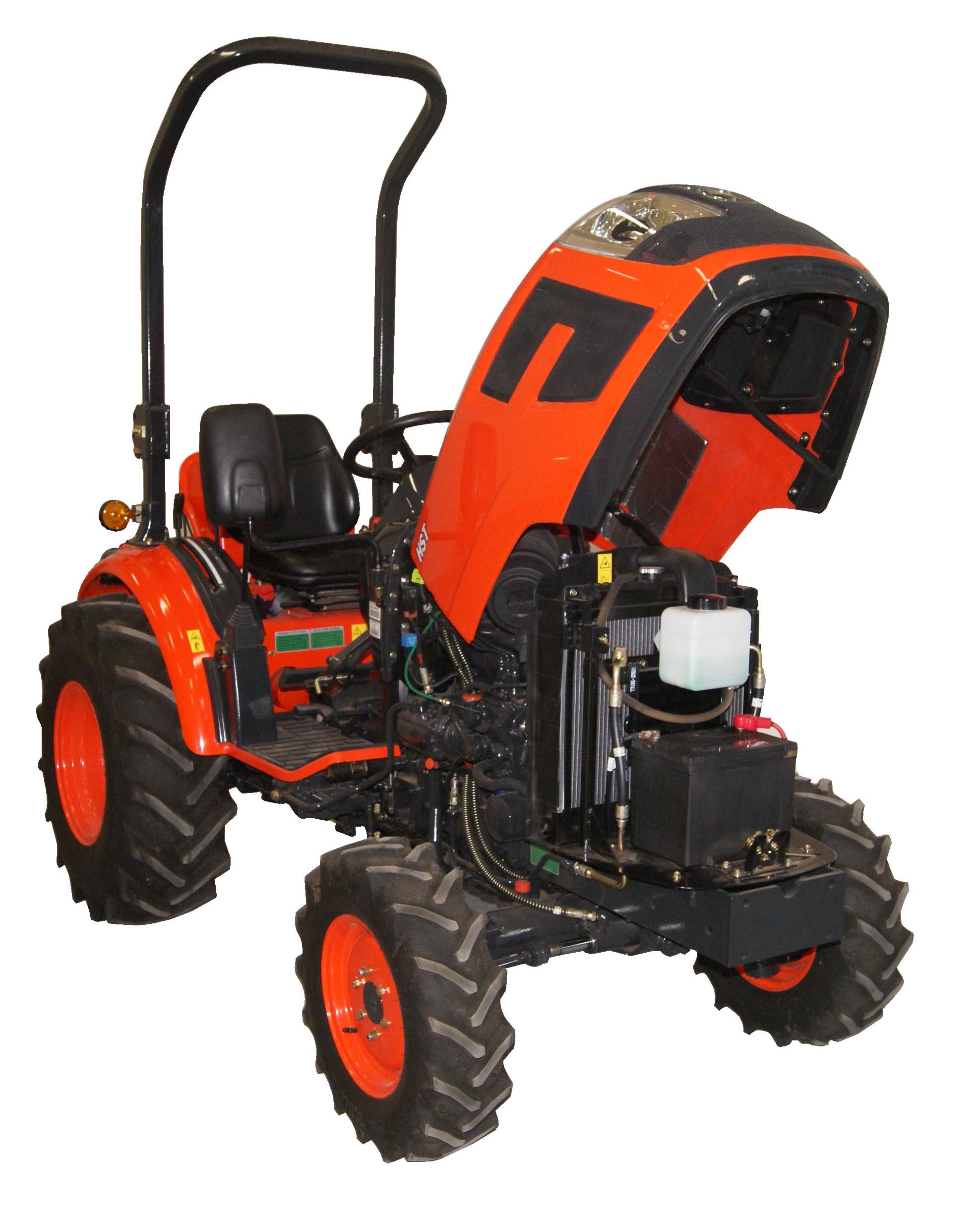

 Engine

Kioti diesel engines produce low noise, little vibration and meet or exceed EPA regulations. The CK3310 HST is equipped with a 3-cylinder 33 hp water-cooled diesel engine. Travelling speed can be controlled with the hand lever and foot accelerator pedal. The fuel tank capacity is 25 litres. A heavy-duty front axle and standard 4WD guarantee powerful traction. The CK3310 has 2 infinite travelling speeds 17 km/h in forward and 12 km/h when in reverse. It comes with a hydrostatic single dry clutch transmission; standard rear differential lock, wet disc brakes and a standard 540/rpm PTO.

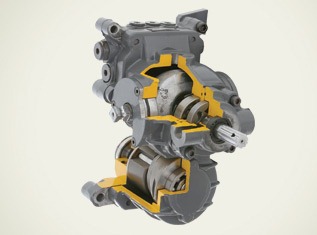

Transmission

The CK3310 HST has 2 infinite travelling speeds 17km/h in forward and 12km/h when in reverse. It comes with a performance proven heavy-duty HST drive unit. A single pedal controls travelling speed and direction with clutching or hand shifting, therefore the hands remain free for implement control. Rear differential lock, wet disc brakes and 540 rpm PTO standard. A heavy-duty front axle and 4WD guarantee powerful traction.

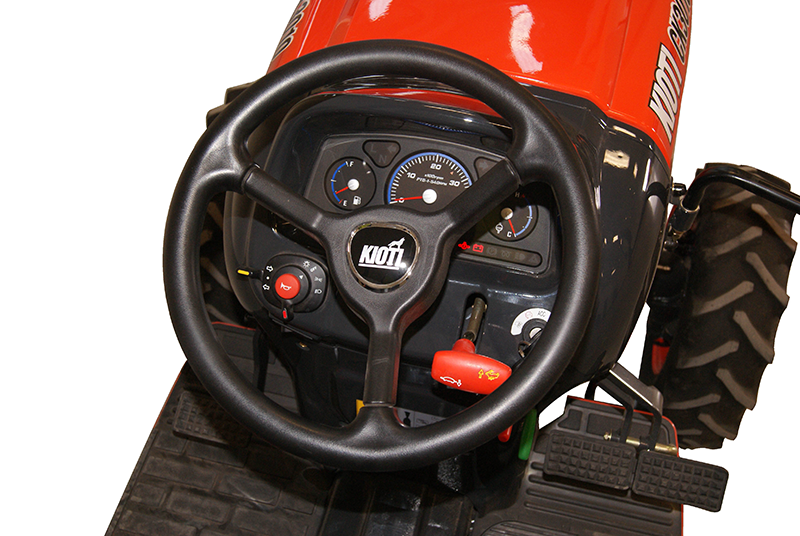

Operator Station

All control levers are easy to reach and allow the operator to work in comfort. The instrument panel is easily visible and the operator can monitor all operations at a glance.

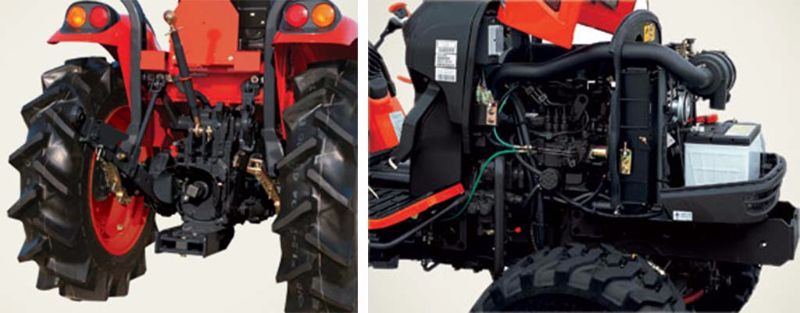

Hydraulics

 A standard joystick lever with a mid-mount double acting valve makes operation of the front-end loader easy, as all operations are performed with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. The CAT1 3-point linkage has a maximum lifting capacity of 739 kg. Hydrostatic Power Steering is standard and makes manoeuvring easy for all operators especially when mowing or working with a front-end loader. The CK3310 HST is equipped with a tandem gear pump which has a pump capacity of 42.9 lpm. The CAT1 3-point linkage has a maximum lifting capacity of 739 kg.



Specifications

CK3310 HST Compact Tractor

ENGINE	BRAKES
Daedong 3A139LWB	Wet Disc Brakes
Liquid Cooled 3 Cylinder Engine
1,393cc Displacement	OPERATOR ENVIRONMENT
33hp @ 2600 rpm	Ergonomic Operator Station
25 Litre Fuel Tank Capacity	Illuminated Instrument Panel
	12volt Power Outlet
TRANSMISSION	High Back Seat
Dry Single Plate Clutch	Step Through Platform
2 Range Hydrostatic	Front Work Lights
Standard Differential Lock	Cruise Control
4 Wheel Drive	Rubber floor mat
	DIMENSIONS
POWER TAKE OFF	Overall Length 2790mm
Independent 540 RPM Rear	Overall Height 2108mm
	Overall Width 1250mm
HYDRAULICS & LINKAGE	Wheelbase 1520mm
Tandem Gear Pump	Ground Clearance 330mm
42.9 lpm Max. Flow Pump Capacity	Total Weight 1025kgs
Category 1 Three Point Hitch
546kgs Max. Lifting Capacity @ 600mm Behind Lift	TYRES
Hydraulic Lift Position Control	Industrial / Turf / Agricultural
Power Steering

*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
