CK4210 HST

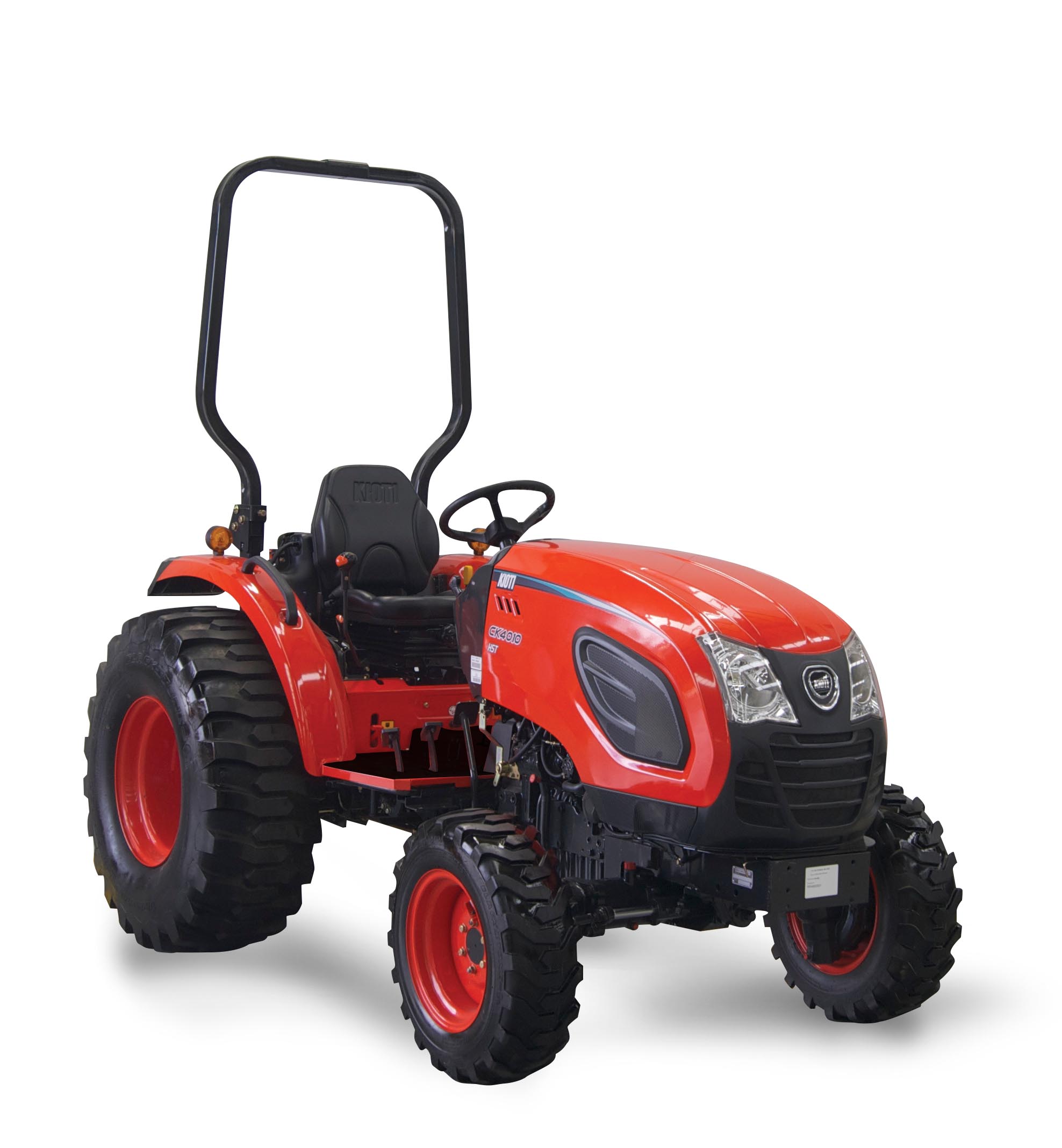

The new generation Kioti compact CK4210 HST 42 hp Daedong diesel engine tractor comes with either manual or hydrostatic transmission. A maximum ground clearance of 340 mm makes usage on a rocky or uneven terrain simpler
Standard Features Include:
- Twin Pedal HST Transmission
- 4WD, Power Steering
- Hydraulic Remotes Standard
- Flat Working Platform
- Fold Down ROPS Frame
- Link Pedal
- Cruise Control
Engine & Transmission
Innovative eco-friendly Daedong engine technology for high fuel efficiency and environmentally friendly with its low levels of smoke, noise and vibration.
HST models feature performance proven, heavy-duty HST drives that deliver power and efficiency. The three range transmission, high, mid, low, and along with a twin pedal operation makes your job easier, smoother and safer.
HST models employ a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use and when doing repetitive tasks.
Manual transmission models feature 9 Forward and 3 Reverse speeds delivering heavy-duty performance. Second and Reverse gears are synchronised for efficient forward and reverse operations requiring frequent shifting.
Operators Station

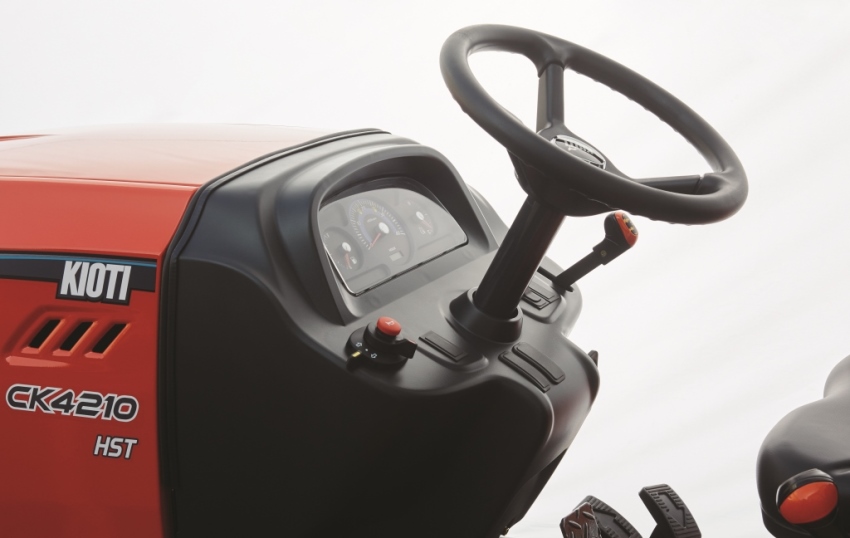

The standard power steering minimises the effort required to make tight, repetitive turns. A single lever joystick and dual HST pedals are conveniently located for optimum operator comfort.
Specifications
| CK4210 HST | |
|---|---|
| ENGINE | BRAKES |
| Daedong 3B183LWM-E | Independent Oil Immersed Disc Brakes |
|
Liquid Cooled 3 Cylinder Diesel |
Cast Iron Transmission and Axle Housing |
| 1826cc Displacement | |
| 42hp @ 2600 RPM (Max hp) | OPERATOR ENVIRONMENT |
| 34 Litre Fuel Tank Capacity | Front Work Lights with Indicators/Brake Lights |
| Step Through Platform | |
| TRANSMISSION | Under Bonnet Muffler |
| 3 Range Hydrostatic Drive | Comfort Seat |
| Cruise Control HST Models | Tool Box |
| 4 Wheel Drive | |
| Rear Differential Lock | TRAVEL SPEEDS |
| Infinite Speeds from 0-25 km/h F/R (HST) | |
| HYDRAULICS & LINKAGE | |
| Manual Linkage Control | DIMENSIONS |
| 44.4 l/min Total Flow | Overall Length 3070 mm |
| Category 1 Three Point Linkage | Overall Width 1400 mm |
| Draw Bar | Overall Height 2650 mm |
| 4 Hydraulic Remotes (2 Rear, 2 Front w/Joystick) | Wheelbase 1670 mm |
|
740kg Max Rear Lift Capacity 600mm Behind Lift |
Ground Clearance 340 mm |
| TYRES | WEIGHT |
| Industrial / Turf / Agricultural | 1200 kg |
