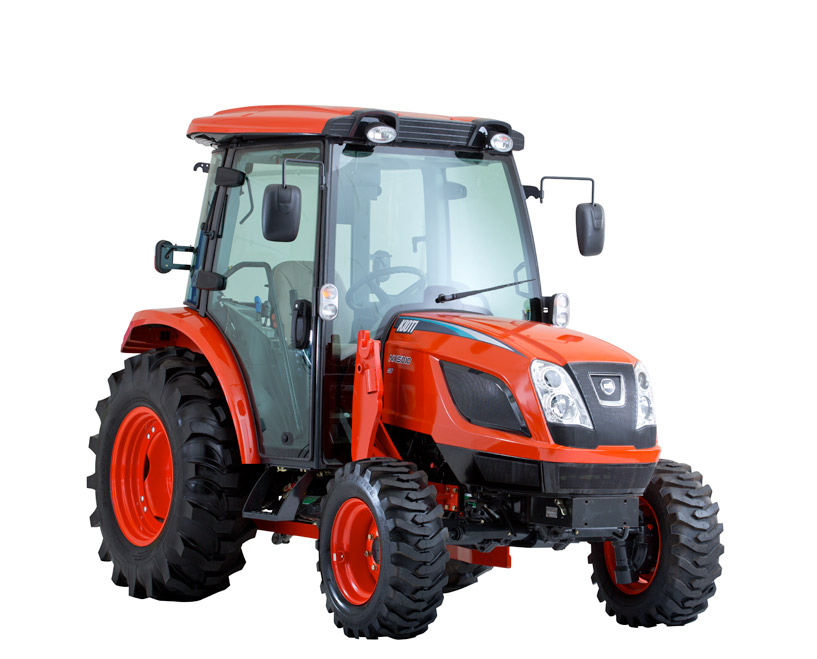

NX6020 Cabin
The NX6020 tractors are ready for any job that demands a durable tractor. An efficient engine, HST Drive and flat work platform make the NX series a great value tractor. The NX series is loaded with standard equipment and features such as wet disc brakes, rear remotes, PTO, adjustable seat and true cruise control.
Standard Features:
- Auto PTO
- Remote Valves (2)
- 7-Pin Socket
- Tilt Steering Wheel
- Heater and A/C
- CD Player
- Joystick Valve
Engine & Transmission
The exceptionally quiet KIOTI diesel engines produce little vibration at working speeds and meet or exceed all EPA and CARB regulations through optimal combustion and fuel economy.

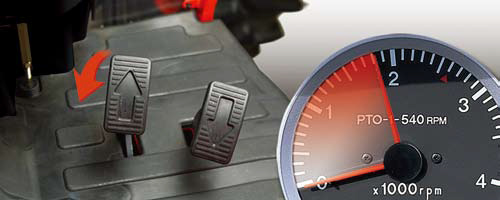

The NX series Kioti tractor feature a performance-proven heavy-duty HST transmission that delivers power smoothly and efficiently. The 3-speed ranged transmission with separate twin pedals makes the job easier, smoother and safer. The NX6020 Cab tractors have been equipped with a performance proven, heavy-duty HST drive unit. Changing between forward and reverse is done without clutching or hand shifting with the dual pedal controls system. With the KIOTI HST drive system, your hands remain free for steering and implement control.

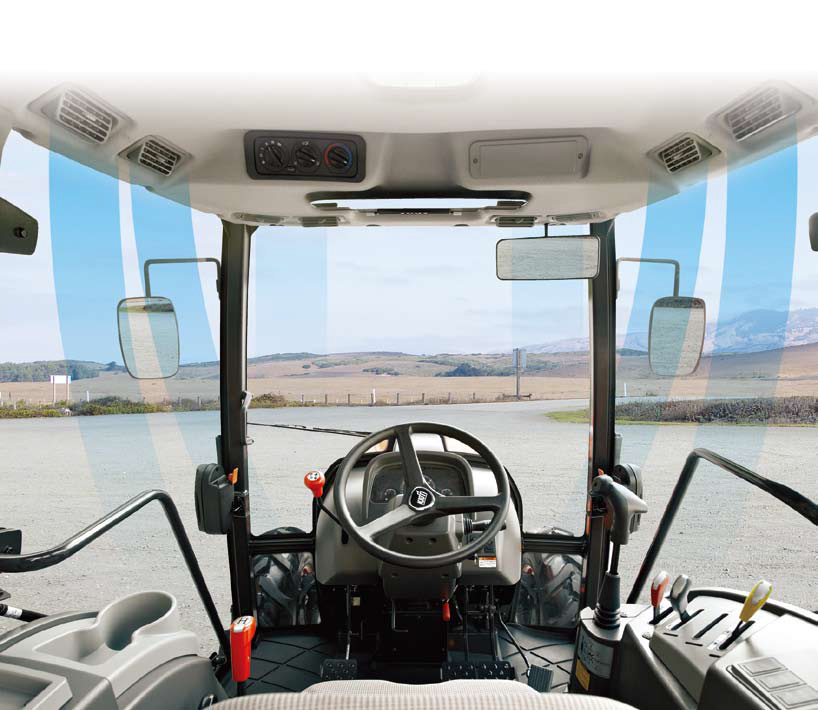

Operator Station
A newly designed LCD panel provides all necessary information offering high-visibility through symbols and letters with LED lights. The LCD monitor also displays PTO revs, fuel indicator and engine temperature. The NX series comes with a stylish and comfortable cabin deluxe seat and easy to reach and operate controls.
Hydraulic System
An additional and separate filter for KIOTI HST transmissions prevents possible contamination from other hydraulic systems and helps to assure product life. The addition of an oil cooler for the HST system prevents system oils from overheating under heavy loads and harsh working conditions.

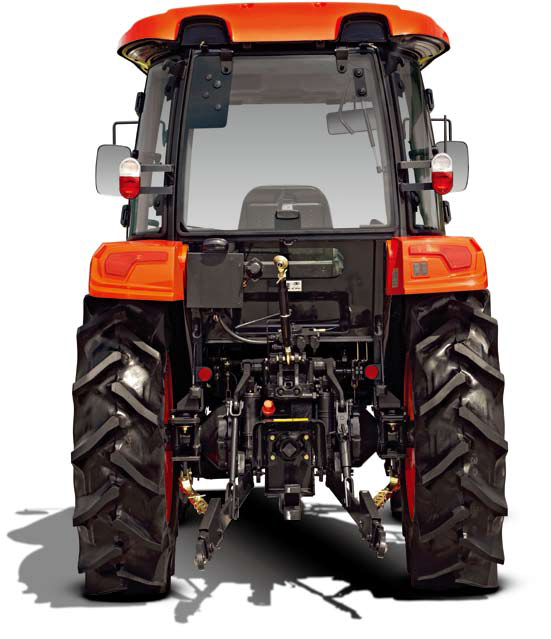

With a lift of 1334 kg, the NX series Cat. 1 three-point hitch has the power to spare when carrying large implements, such as mowers and blades.
Specifications
| ENGINE | FRONT AXLE |
| Daedong 4B243LWHR | Wet Multi Disk Type |
| Liquid Cooled 4 Cylinder Diesel | |
| 2435cc Displacement | OPERATOR ENVIRONMENT |
| 60hp @ 2600 rpm (Max hp) | High Quality Fully Adjustable Seat |
| 56 Litre Fuel Tank Capacity | Arm rests and Backrests |
| Adjustable Steering Wheel and Instruments | |
| TRANSMISSION | |
| 3 Range Hydrostatic | CABIN |
| 4 Wheel Drive | Luxury Spacious Cabin |
| Differential Lock | Step Through Platform |
| Deluxe Fully Adjustable Suspension Seat | |
| POWER TAKE OFF | Full Dash Instrumentation |
| Independent 540rpm PTO | Air Conditioning with Heating & Ventiation |
| Electric Switch Engagement | CD Player with AM/FM Tuner |
| Joystick Control Valve, Sunvisor | |
| HYDRAULICS & LINKAGE | |
| Position & Draft Control | TRAVEL SPEEDS |
| Implement Pump 36.4 l/pm | Forward 0-28kph / Reverse 0-28kph |
| Steering Pump 31.2 l/pm | |
| Maximum Total Flow 67.6 l/pm | DIMENSIONS |
| Quicke Hitch Hook Ends (Cat 1) | Overall Length 3547mm |
| Swinging Draw Bar | Overall Height (Cab) 2415mm |
| 4 Sets of Hydraulic Remotes (2 rear/2 front) | |
| Wheelbase 1920mm | |
| TYRES | Minimum Ground Clearance 376mm |
| Industrial Tyre R4 Front 10 - 16.5 | Weight (Cab) 2000kgs |
| Rear 14.9 - 24 | |
| MODELS | |
| NX6010 Cabin | |
| OPTIONS | |
| KL155 Loader with 4in1 Bucket | 300mm Backhoe Bucket |
| KB2475 Backhoe with 400mm Bucket | 450mm Backhoe Bucket |
| Rear Counter Balance Weight Box (650kg) | 600mm Backhoe Bucket |
| AG Tyres 8-16 / 13.6-24 (check for availability) | Pallet Forks |
| 230mm Backhoe Bucket | Bale Forks |
*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
