CS2610
The KIOTI CS2610 tractor goes beyond getting a ride-on for your lifestyle block or home section. With the increasing number of subdivisions, this is the perfect tractor for homeowners with property sizes of up to 5 acres or possibly more.
The CS2610 has been specially designed for homeowners that do their own yard work, anything from mowing to mulching or digging with its optional backhoe.
Standard Features:
- Power steering
- Rear PTO
- Mid PTO

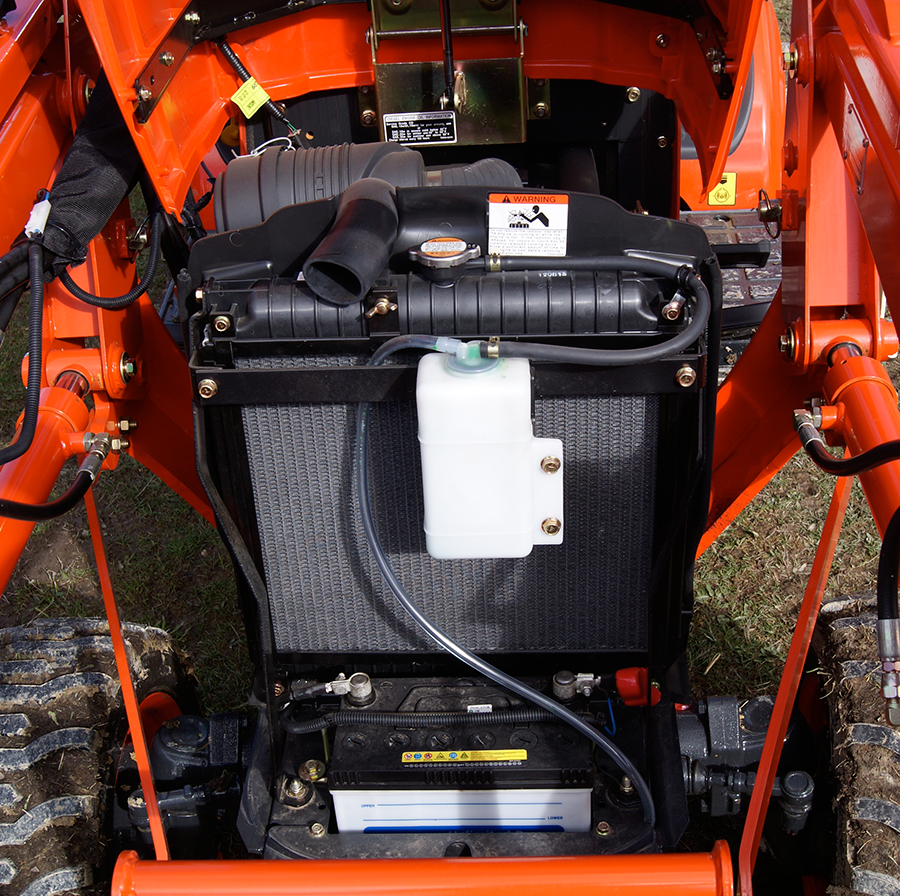

Premium Diesel Engine
A 26hp optimized combustion diesel engine has large power output yet low fuel consumption. Fluid service and inspection are easily accessible to the operator.

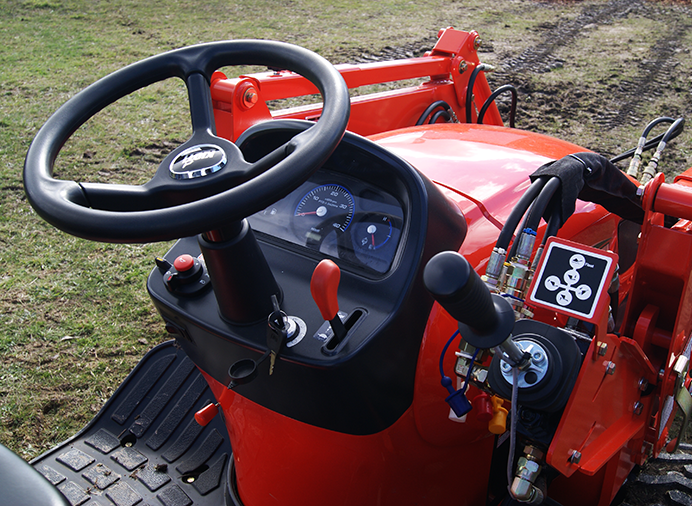

Ergonomic Operator Station
The ergonomically designed operator station places operator controls within easy reach to enjoy a comfortable and smooth ride. A retractable seat belt and operator presence switch are included for safety. The dashboard illuminates when the engine is started. The digital gauge package includes tachometer, fuel and temperature gauges along with low fuel and high-temperature warning lights.
Specifications
| ENGINE | FRONT AXLE |
| Daedong S77SL | Power Steering |
| Liquid Cooled 3 Cylinder Diesel | |
| 1131cc Displacement | OPERATOR ENVIRONMENT |
| 26 HP @ 3000 rpm (Max hp) | Front 215x45-10 / Rear 26x12.00-12 |
| Illuminated Instrument Panel | |
| TRANSMISSION | 12volt Power Outlet |
| HST | High Back Seat |
| Infinite | Step Through Platform |
| 4WD | |
| DIMENSIONS | |
| POWER TAKE OFF | Overall Length 2493mm |
| 540 rpm Rear PTO Speed | Overall Height 2493mm |
| Standard Mid PTO | Overall Width 1181mm |
| Wheelbase 1400mm | |
| HYDRAULICS & LINKAGE | Ground Clearance 162mm |
| 24.6 l/min Total Flow | Total Weight 675kgs |
| 318Kg Rear Lift Capacity | Fuel Capacity 25.5 Litres |
| BRAKES | TYRES |
| Wet Disc Brakes | Front 18x8.5-10 / Rear 26x12.00-12 |
