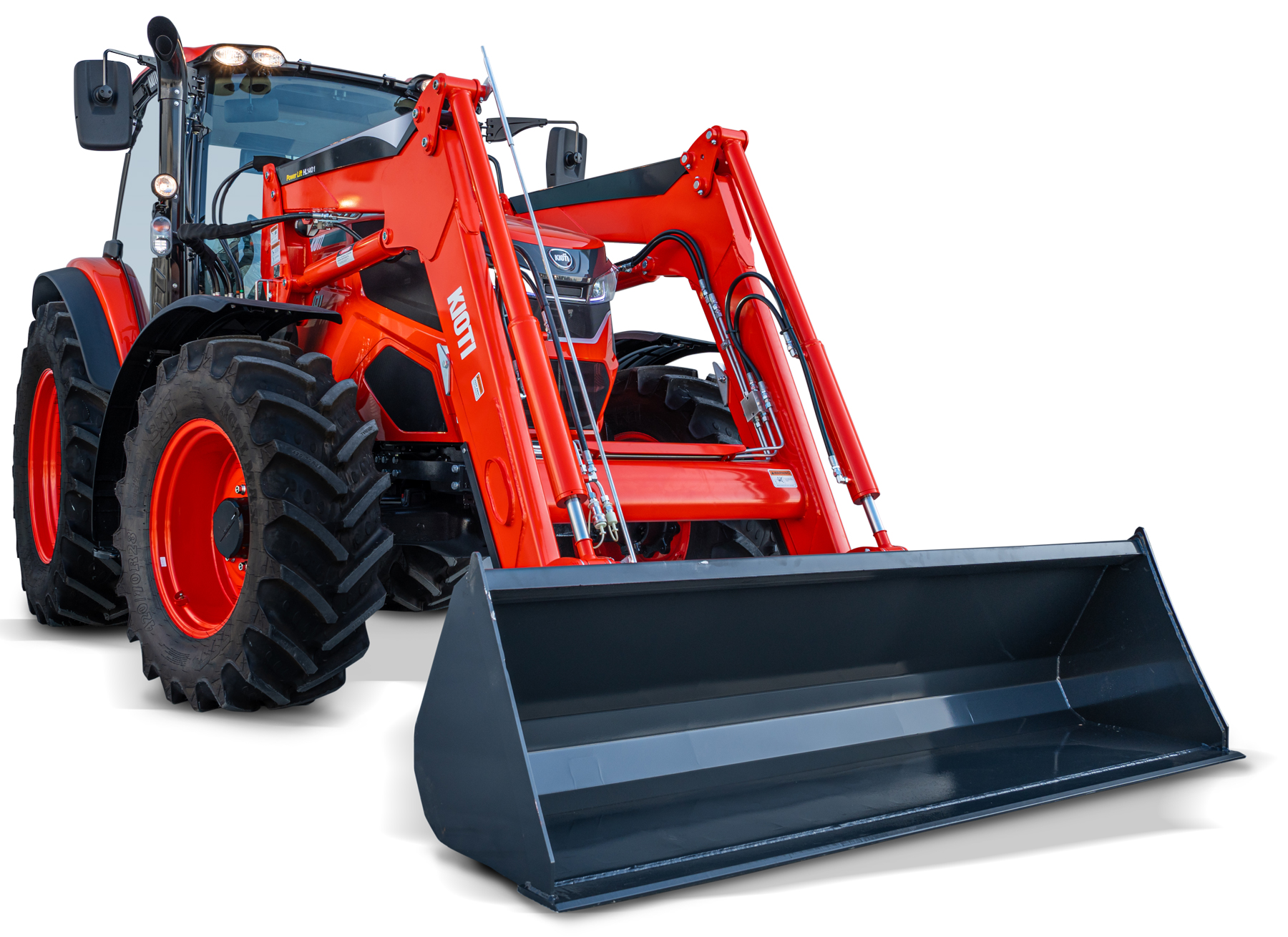

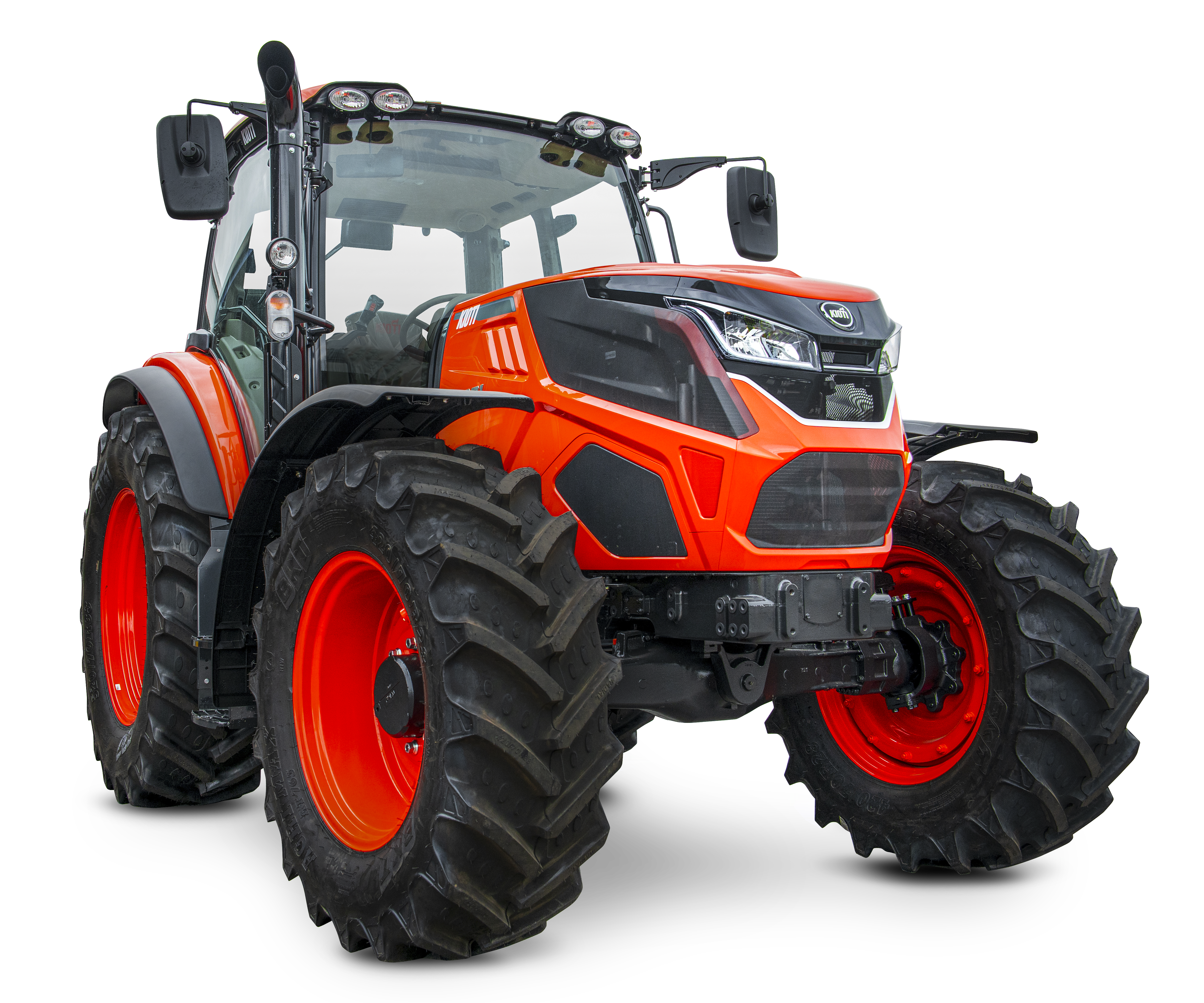

Kioti has entered its next chapter… and it’s bloody good. The all-new Kioti HX 130-140hp tractor.

If you're looking for a top-quality, no-nonsense tractor, you've come to the right place. The HX model offers a spacious and comfortable cabin, user-friendly controls, a powerful engine, and an impressive lifting capacity that'll get your jobs done with ease. Get your hands on a tractor loader combo today starting from only $124,980+gst, including a 4-year or 2000-hour powertrain warranty. Read below to learn more about the top-quality features but if you want the headline, we can say it’s just a bloody good tractorMain Features Include:

  • Powerful 130-140 hp engine
  • 3.8 L common rail diesel engine
  • 8 speed Powershift 8x2x2
  • 32 forward 32 reverse
  • 4853 kg unweighted tractor
  • 118 L min rear hydraulic pump CCLS
  • 165.3 L/min total
  • LSD mechanical front axle
  • Rear lift capacity of 4852 kg at lift point
  • 5 pillar panoramic cabin

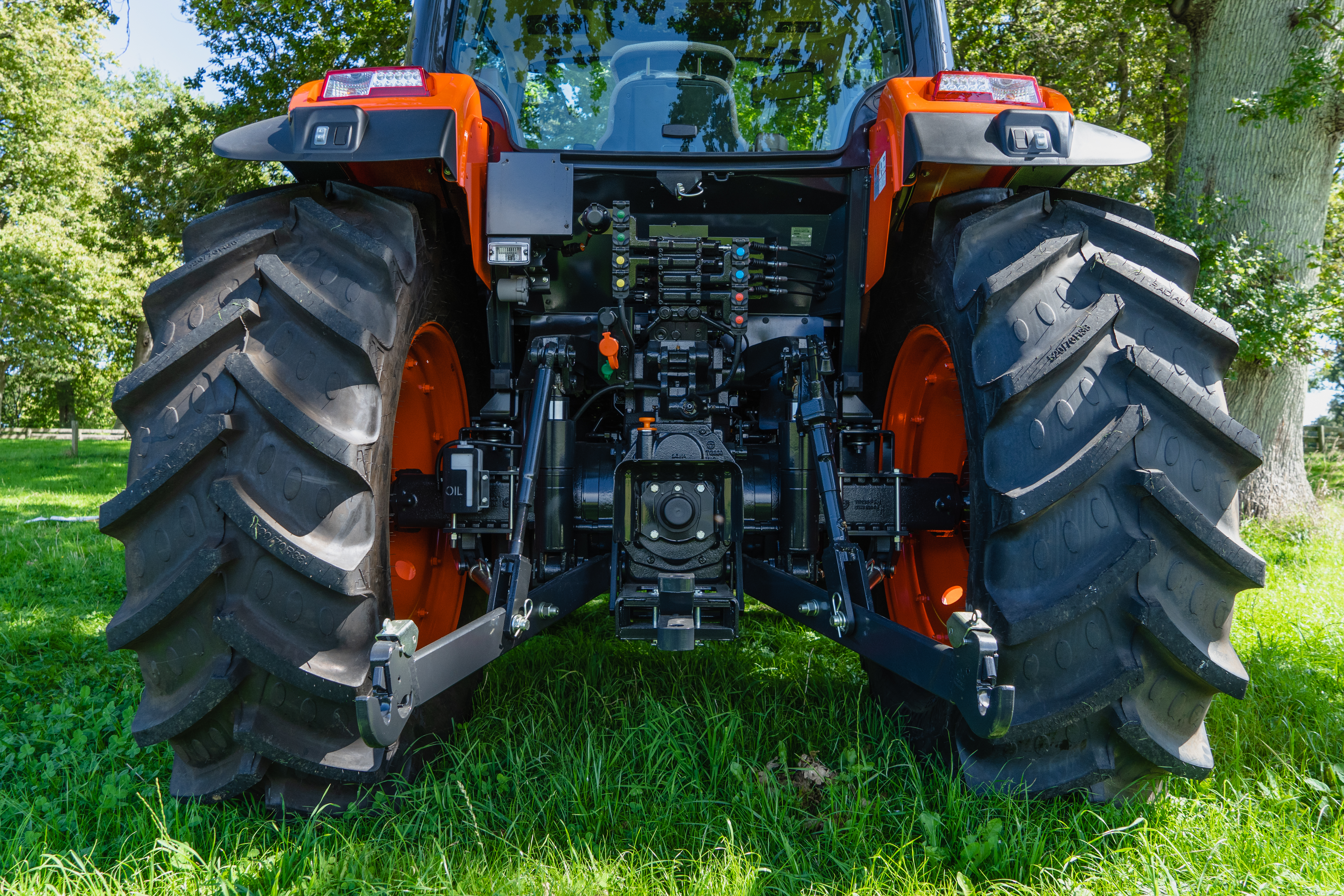

3 Point Linkage

The electronically controlled 3-point linkage system boasts a
4852kg lifting capacity, allowing for the installation of multiple working implements.

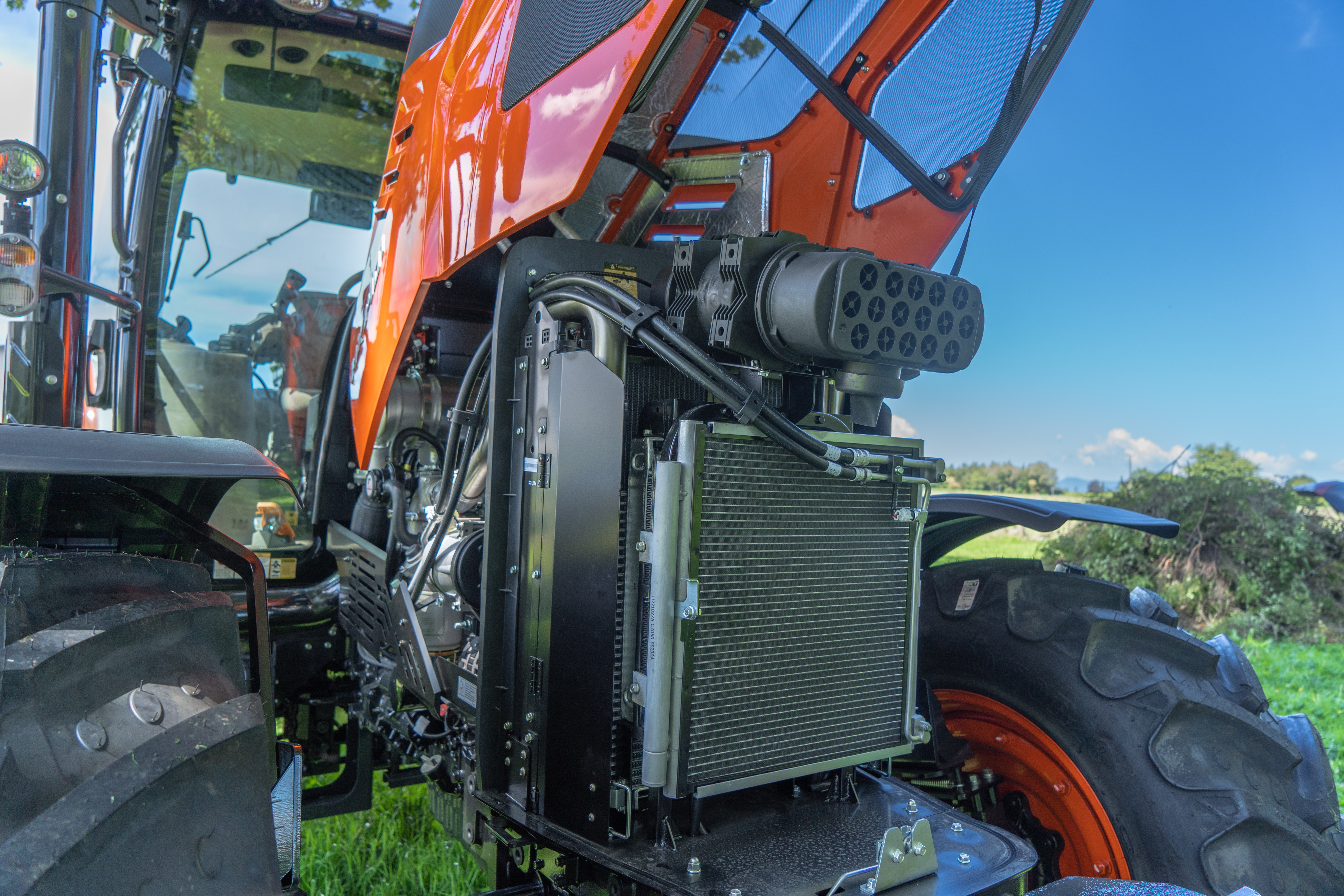

Built with a 3.8L 4-cylinder diesel engine at either 130hp or 140hp, the HX achieves optimum engine performance, thereby increasing work productivity.

Load Sensing

Load Sensing provides optimal hydraulic pressure and flow rate for load sensing operations. This results in automatically neutralising valves in the event of high loads during operation.

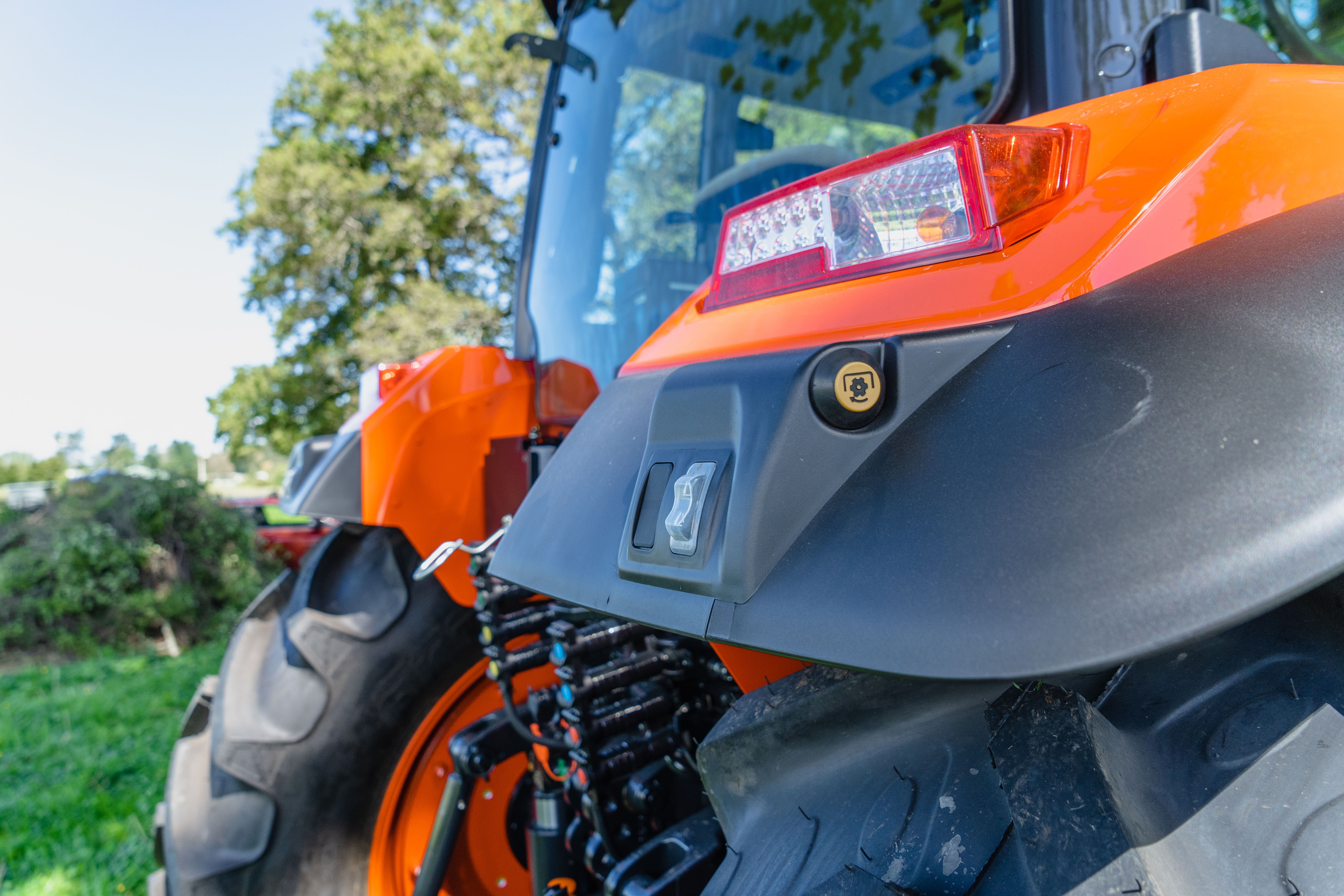

External Controls

The addition of a rear fender remote and PTO switches increases the convenience of both the removal and attachment of external implements.


Limited Slip Differential

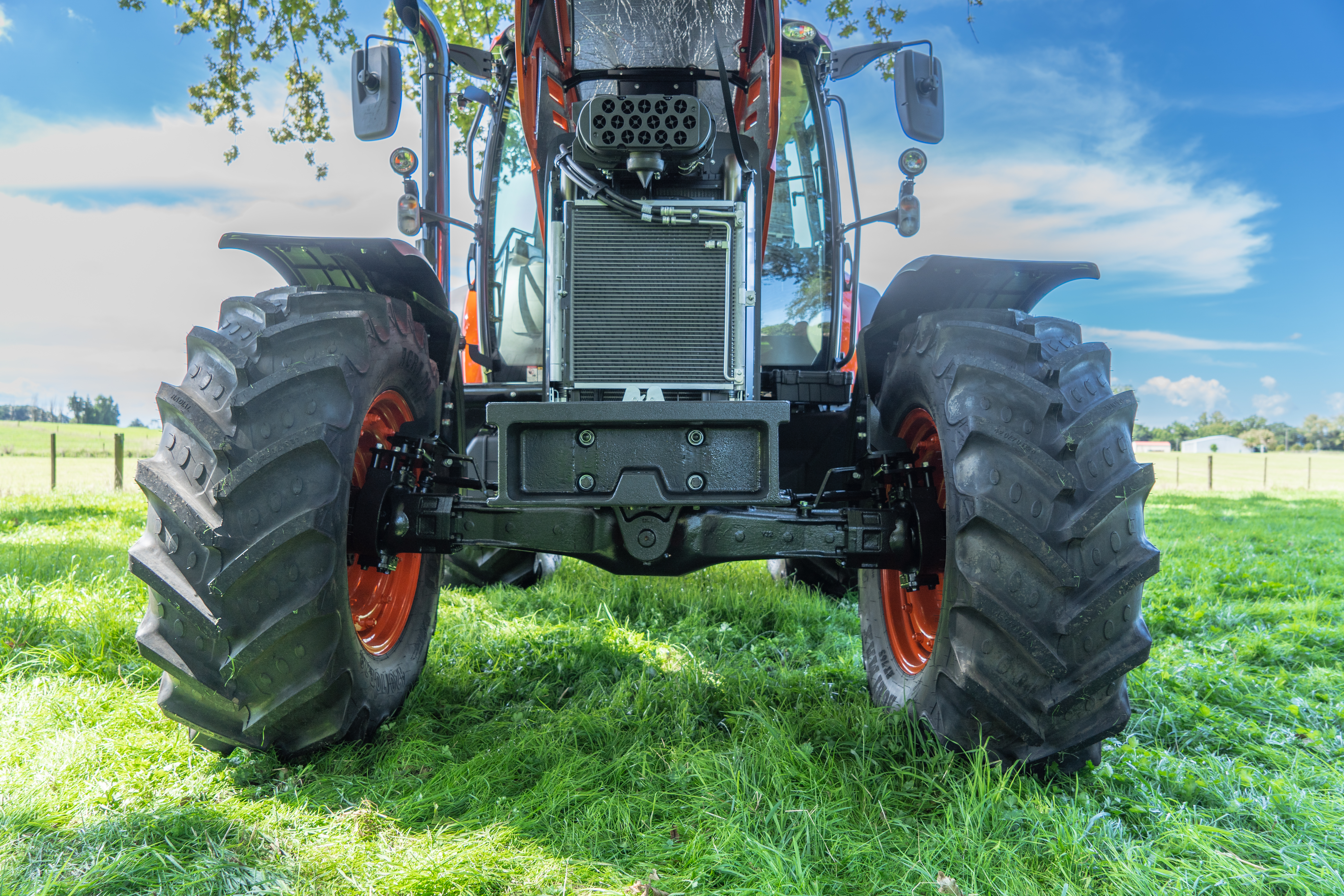

The use of a LSD front axle prevents the occurrence of slippage due to the load difference of the front wheels. This creates traction, greatly aiding manoeuvrability in any conditions.

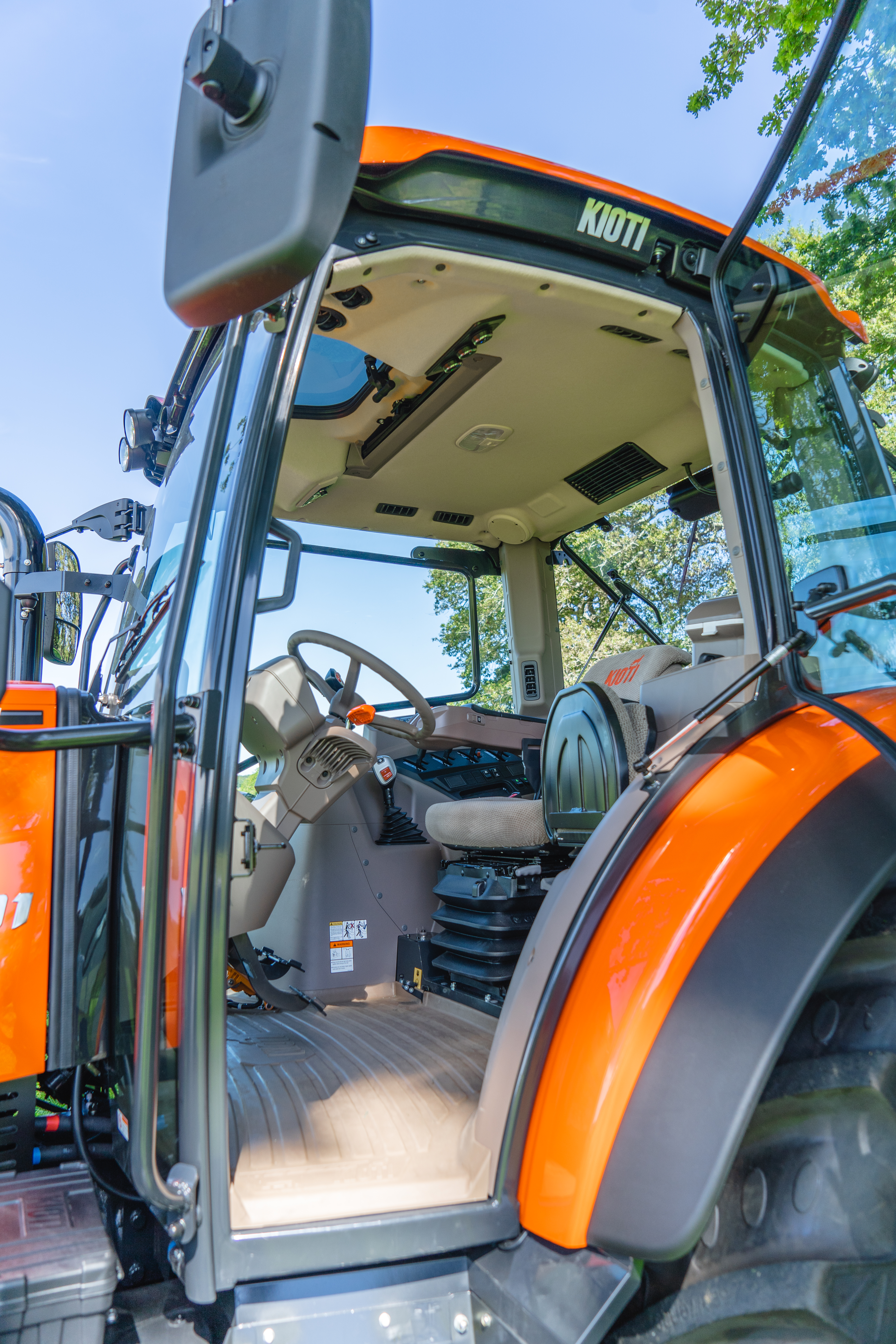

Easy Access Cab

Large ergonomic cabin, with well placed instruments and features. Includes air suspension swivel seat, auxiliary seat with seatbelt, USB charging & numerous storage compartments.

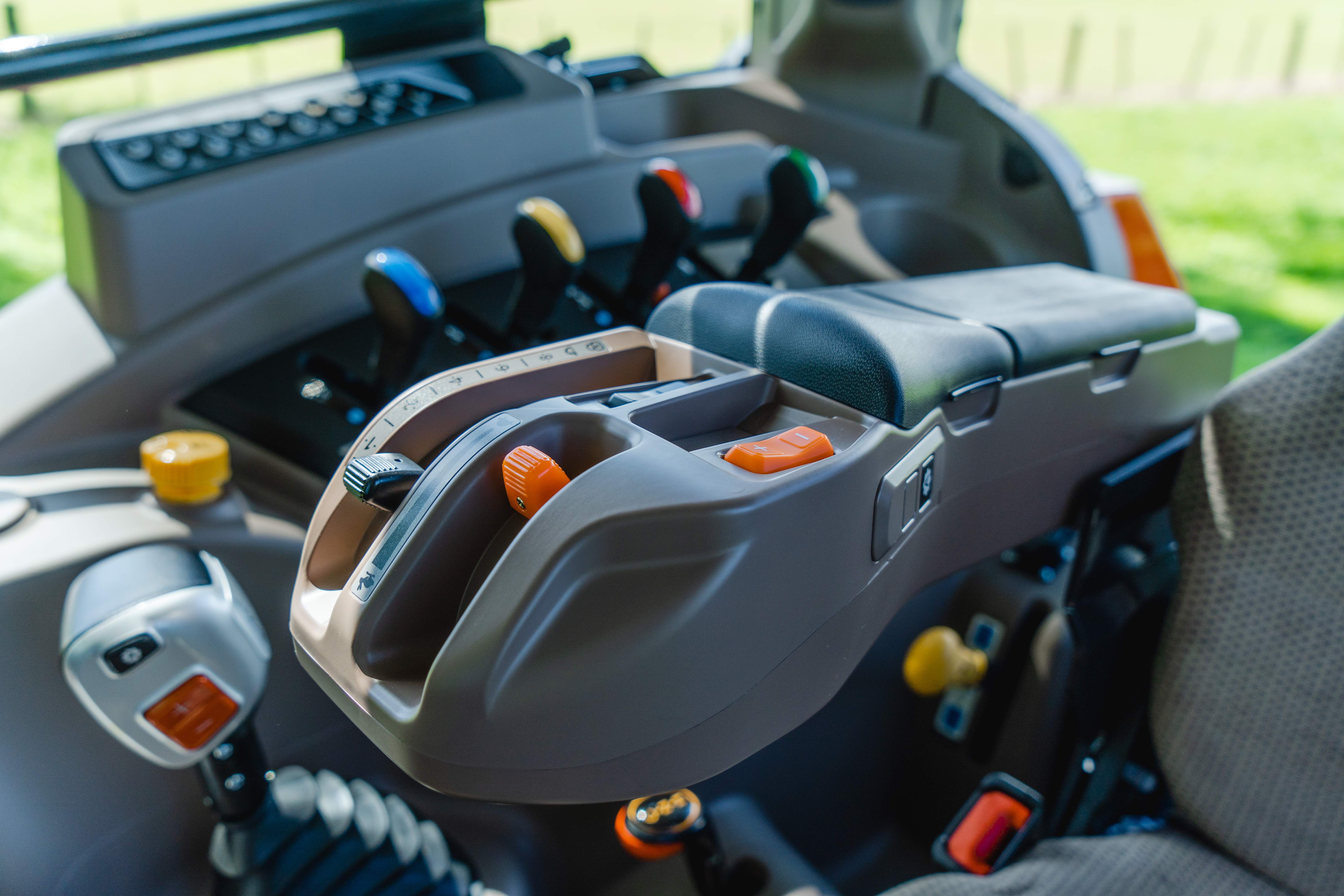

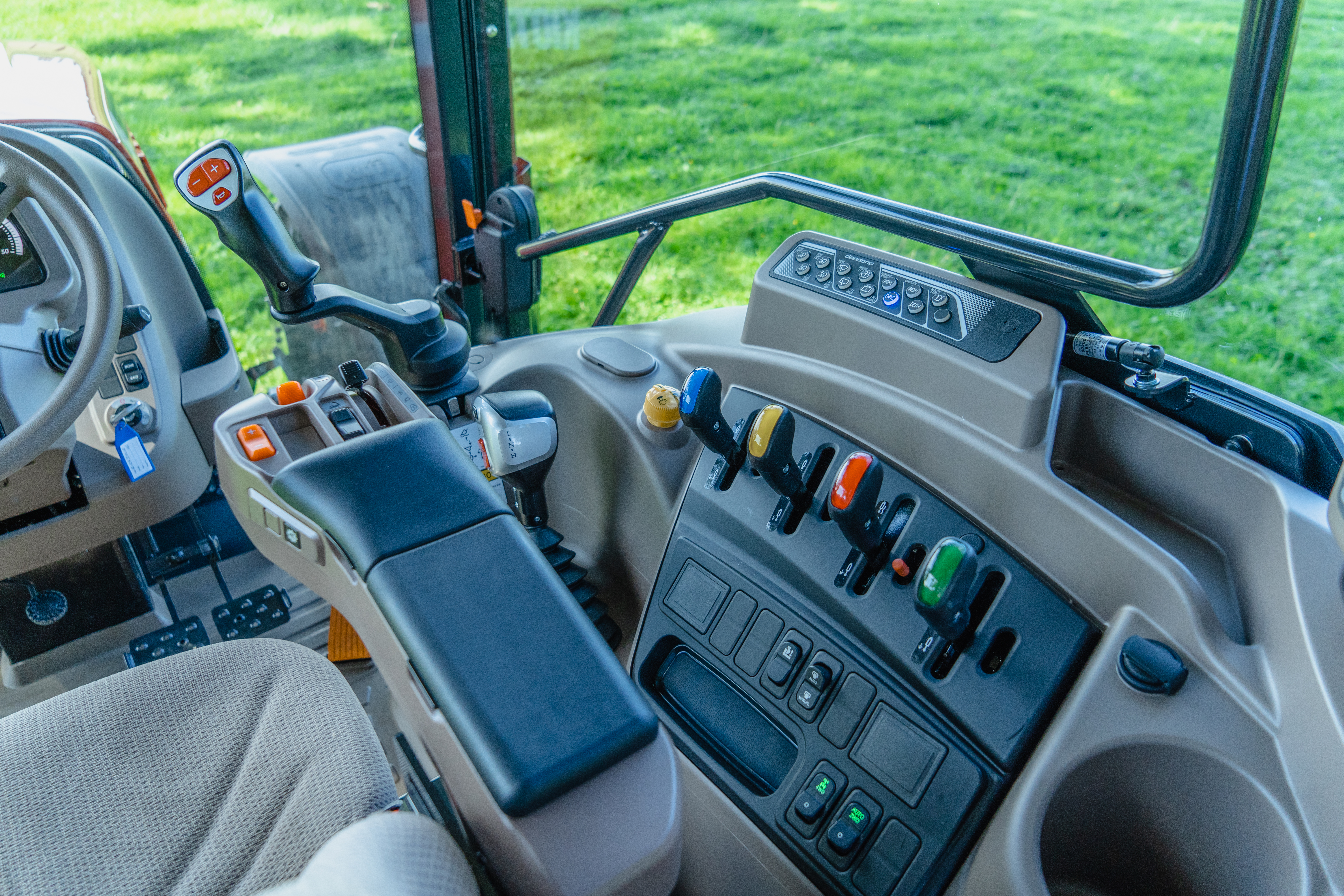

Multi-Functional Armrest

The multi-functional electronic armrest features numerous functions, such as throttle engagement, 3-point linkage lift and lower, Powershift and Auto Powershift mode.

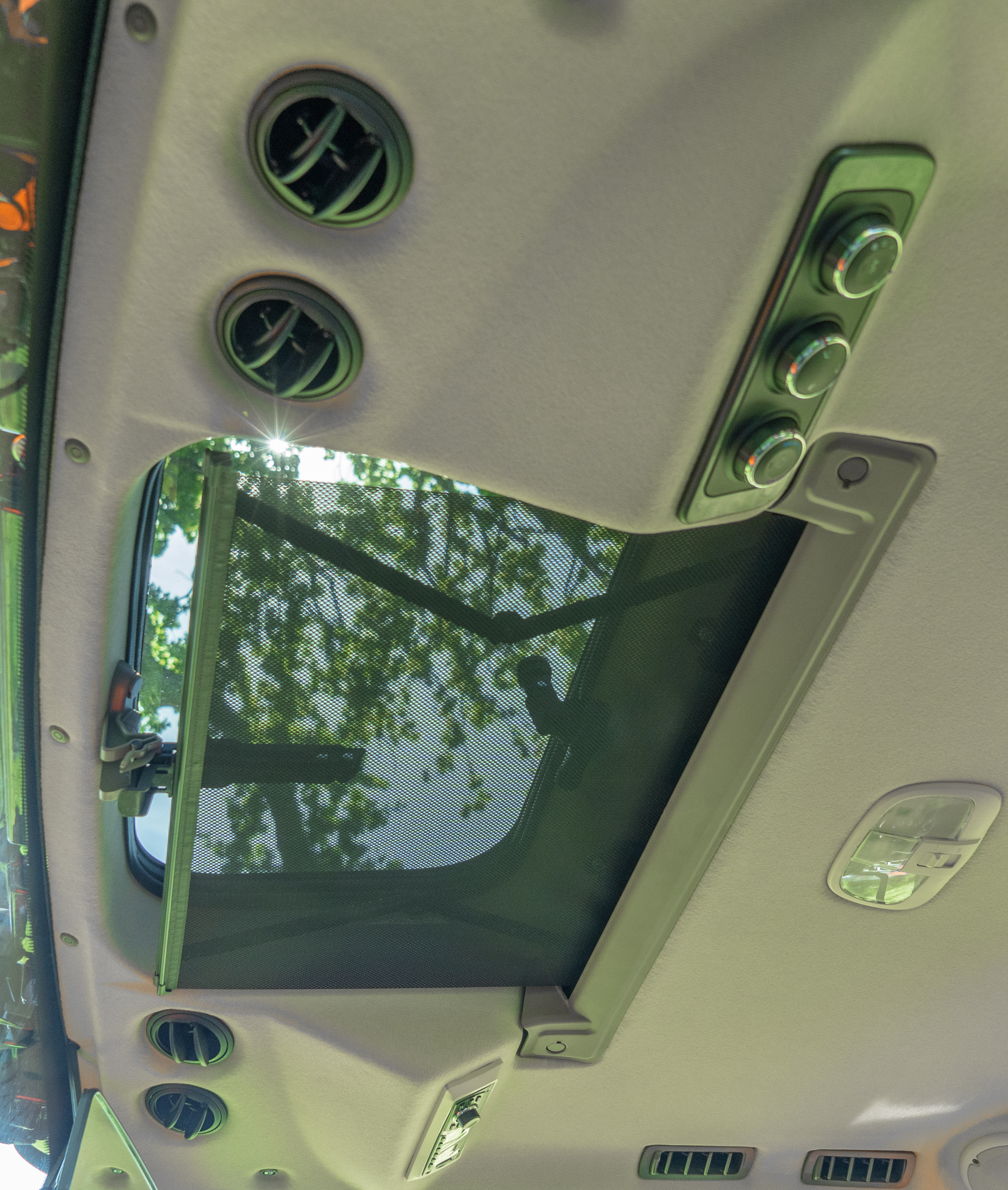

Sun Roof

A transparent sunroof inside the cabin ensures an upward clear vision when using the loader, improving ease of operation and safety.

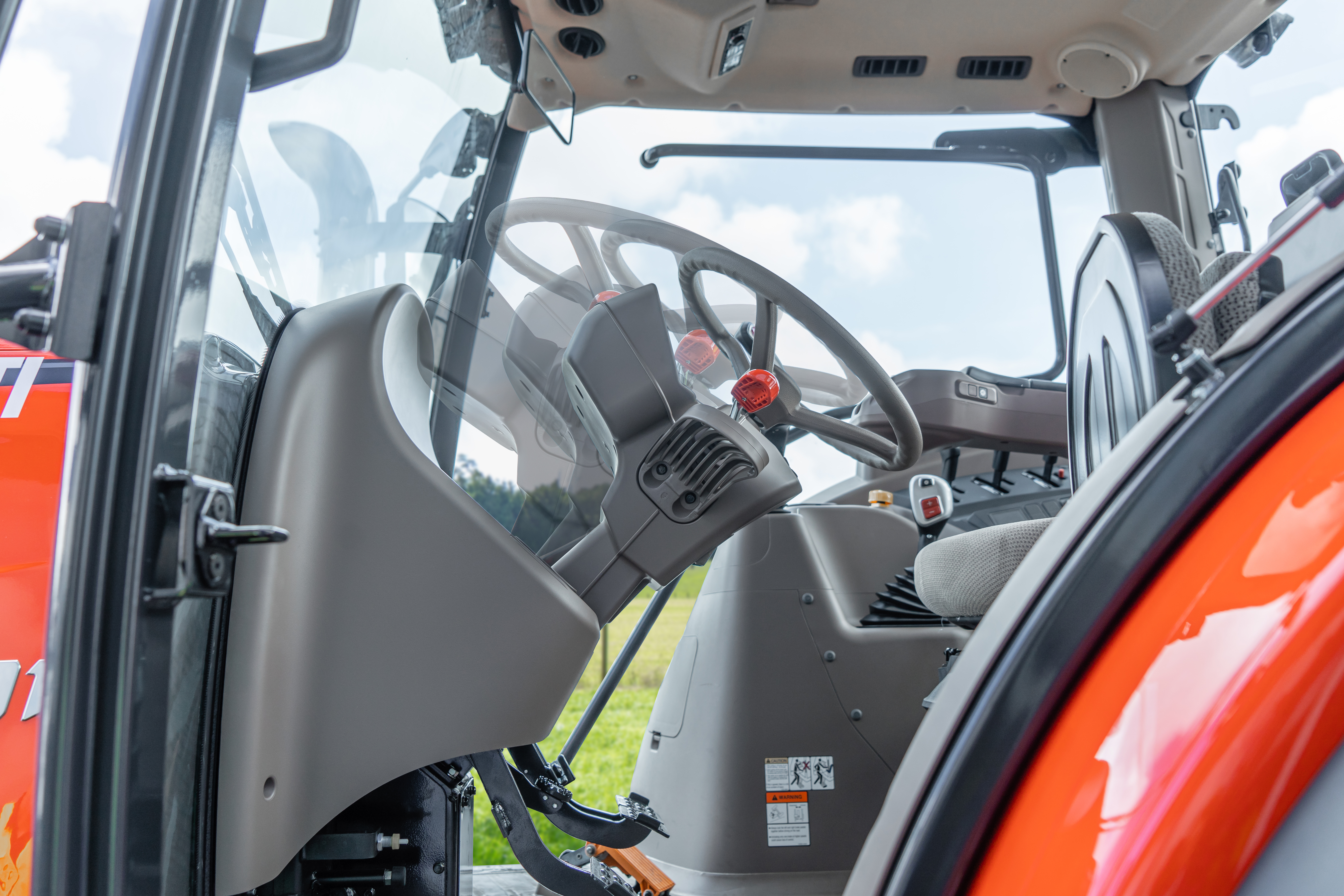

Adjustable Steering Column

Smooth handling thanks to the steering wheel angle/height adjustment setting creates an optimal driving position, improving workability, comfort, and easy access.

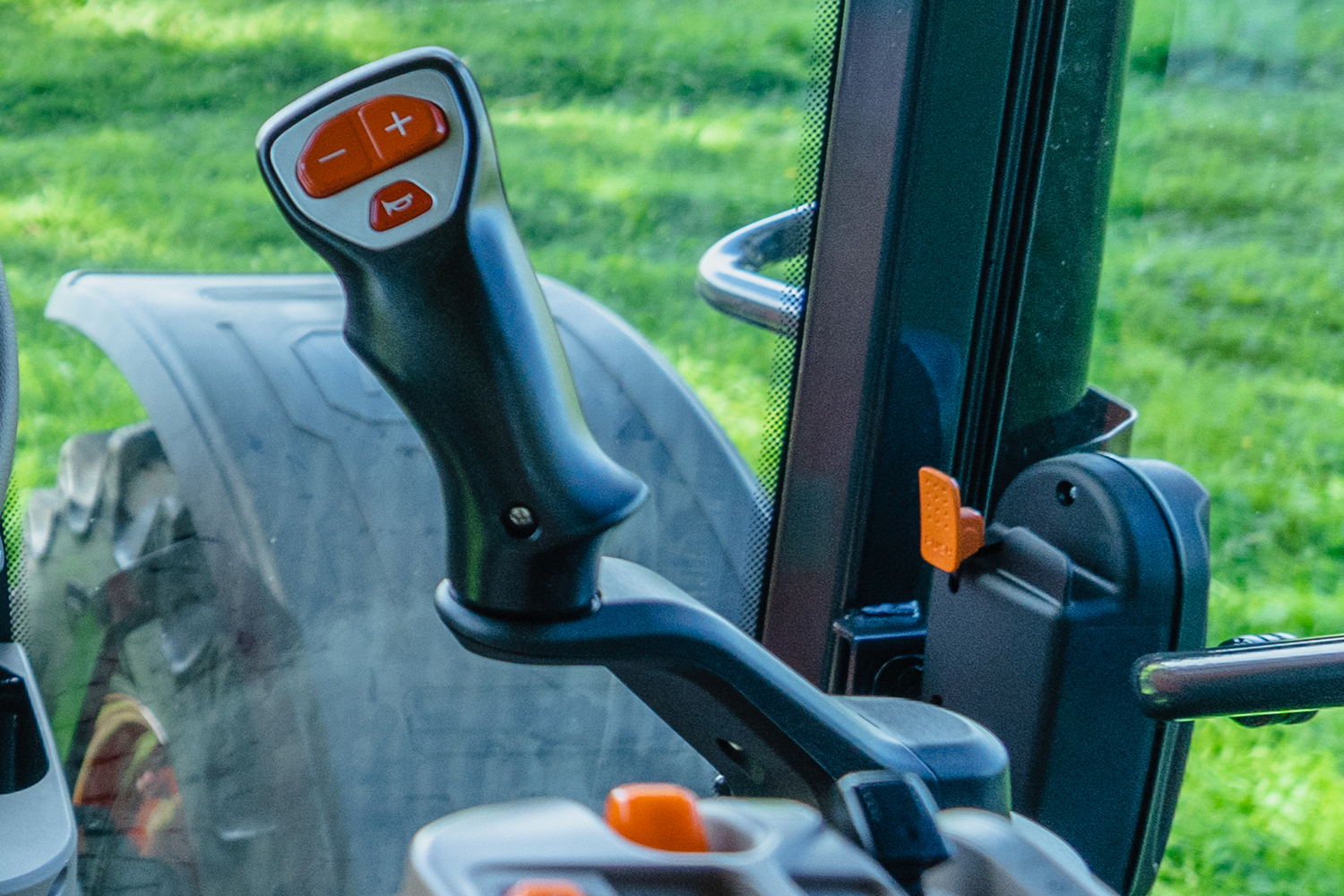

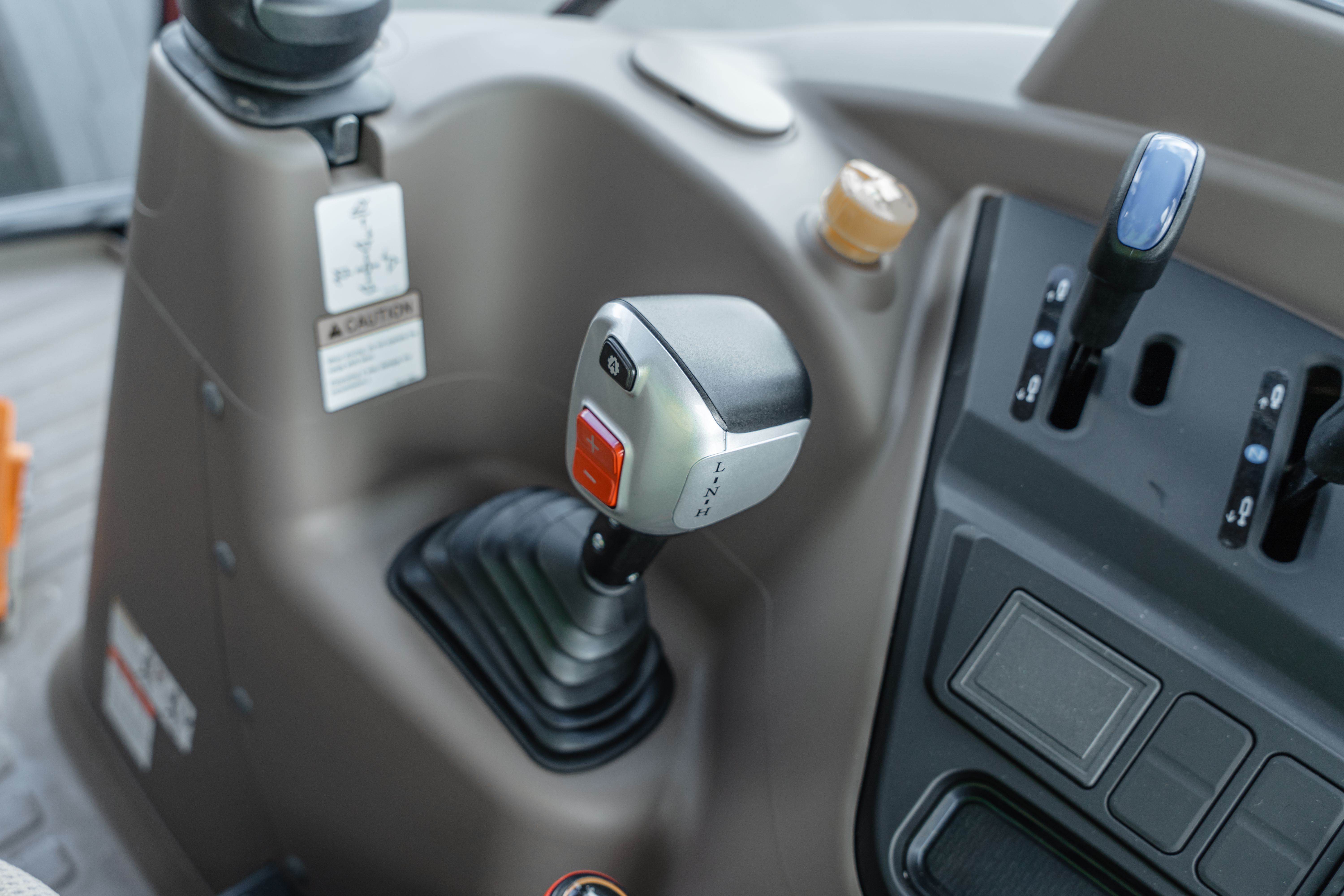

A simple button operation on the side speed lever and armrest gives you a 32x32 transmission with an 8-speed Powershift in 4 ranges.

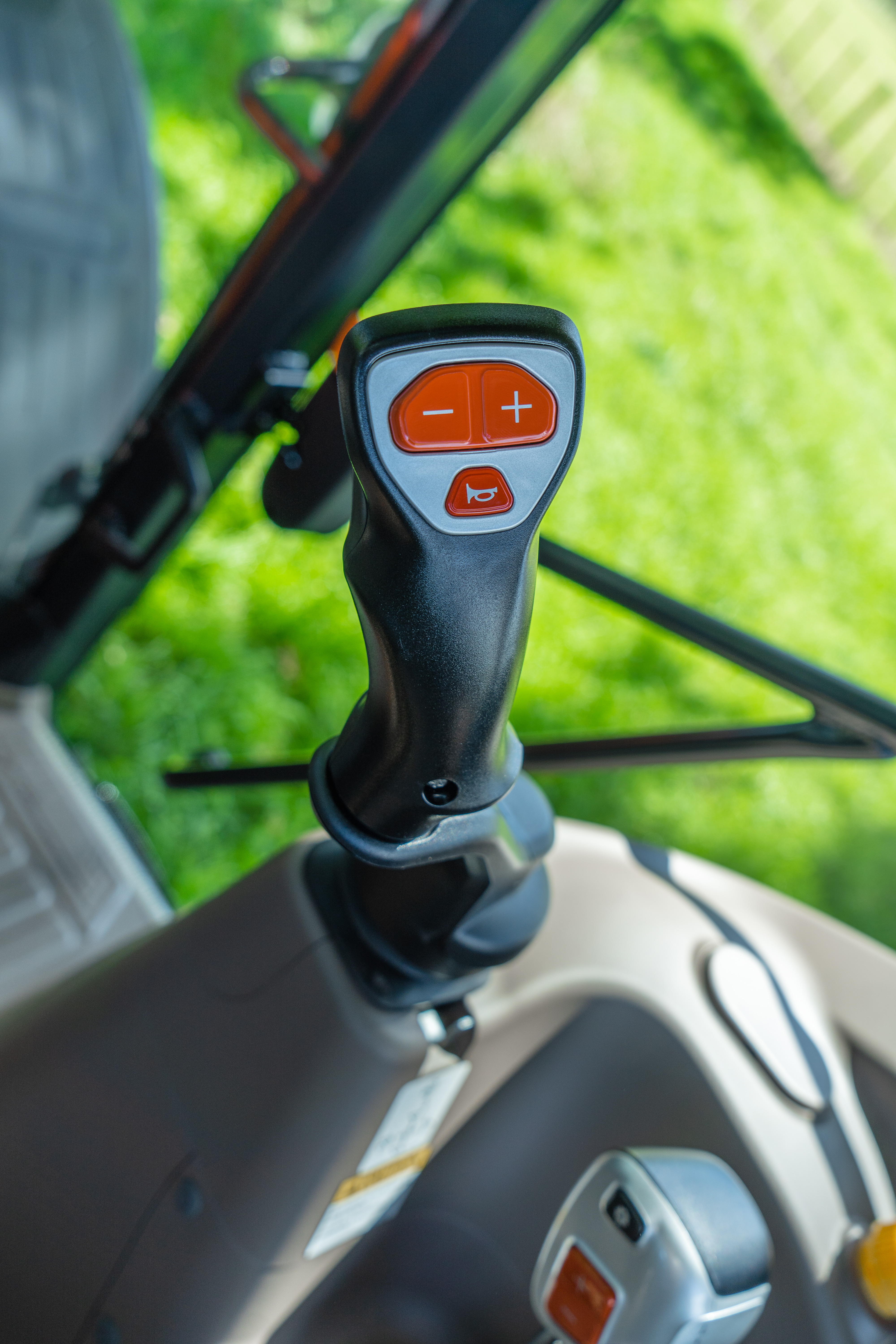

Integrated Loader Joystick

The multi-functional loader joystick is built with 3rd service and Powershift buttons, simplifying loader working conditions for the user.

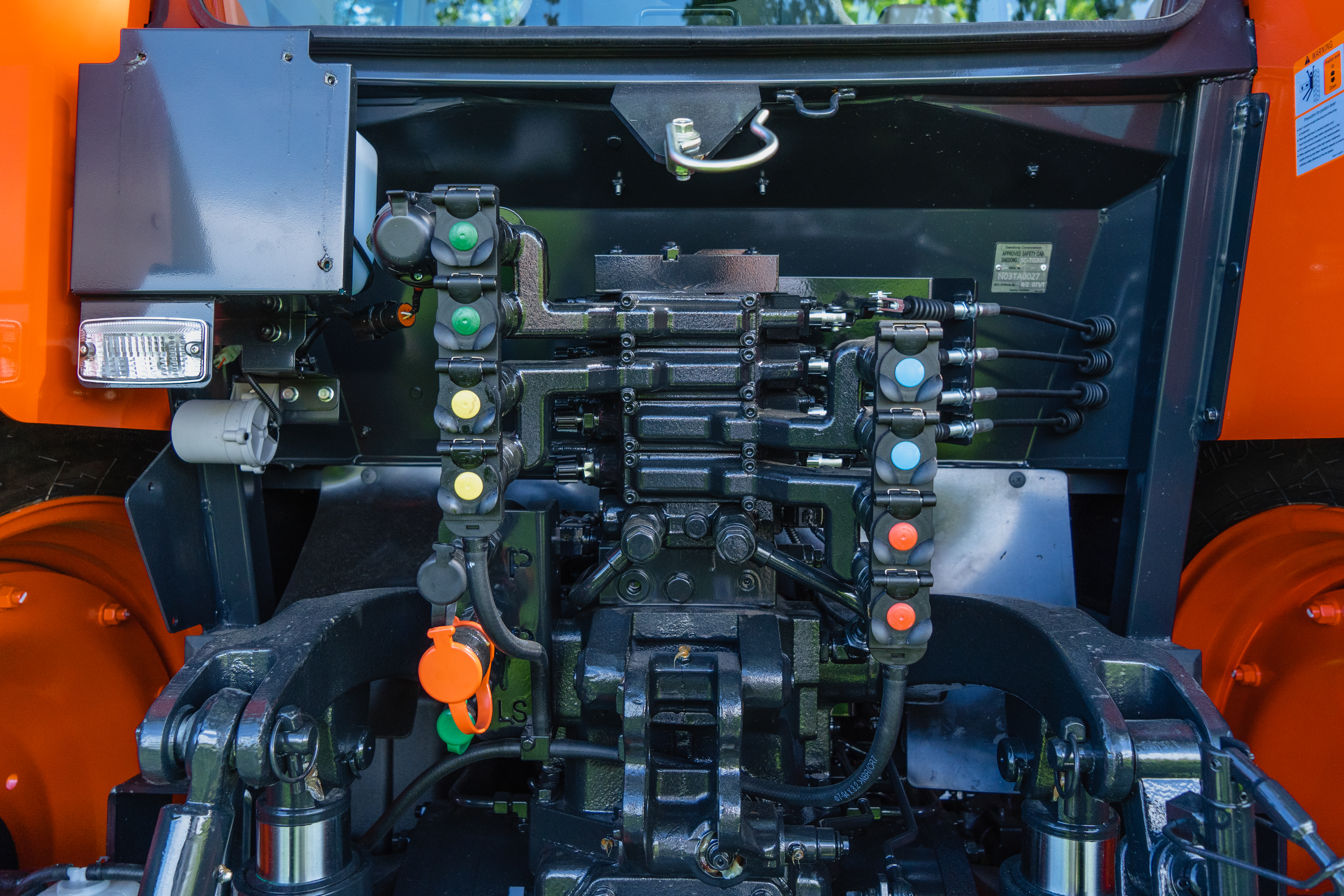

Hydraulic Remotes

Changing or removing implements is light work on the HX, thanks to the four external rear hydraulic ports and one-handed quick couplers. Flow at the remotes is 118 L/min.


HX Series
Kioti 4J243TI-TP2A Wet Disk
130 & 140 HP
3833cc Displacement Equipment
2200 RPM(Max) Deluxe Cabin with A/C and Heating
230 Litre Fuel Tank Capacity Bluetooth Radio
Dual Air Cleaner Adjustable Telescopic & Tiltable Driving Column
  Air Suspension and Swivel Seat
TRANSMISSION with Arm Rests and Backrest
Powershift Flat Operator Deck
Power Shuttle Front and Rear Wipers
Push Button Hand Clutch Internal/External Air Exchanger Filters
Wet Disc Clutch Sun Roof
32F x 32R Speed with Hydraulic High/Low  Front Fenders
Rear Differential Lock Fridge and Heading Cabinet
  Parking Alarm
Main Pump Capacity - 118 lpm
Steering Pump Capacity - 47.3lpm  TRAVEL SPEEDS
Total Maximum Flow - 165.3 lpm Forward 0.38 - 40.48 kph
4852kgs Maximum Rear Linkage Lift Capacity Reverse 0.37 - 40.20 kph
Hydrostatic Power Steering
Category 2 Three Point Linkage DIMENSIONS
Electronic 3 Point Lift Control Overall Length incl. 3PL 4518mm
4 Rear Remote Outlets Minimum Turning Radius 4200mm
  Overall Width Minimum Tread 2267mm
POWER TAKE OFF Overall Height (Cabin) 3011mm
Independent 540/750/1000 PTO Wheelbase 2600mm
Auto PTO Weight Cabin & Tyres 4853KGs
  Minimum Turning Radius 4200mm
LED Light Package TYRES
Front & Rear Weights Front Radial 420/70R28
  Rear Radial 520/70R38

*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
