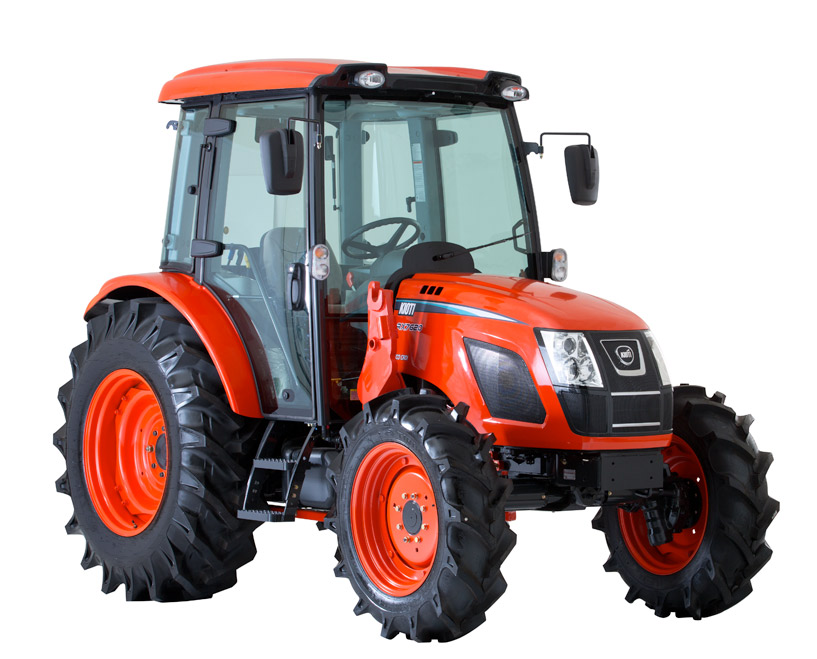

RX8030 Cabin
The new streamlined hood improves visibility. The 60 degree hood opening angle without any side covers enables convenient access for easy maintenance. Other improvements include larger tyres, 50% more lift capacity, higher road speed, increased fuel capacity and higher hydraulic flow. The RX8030 is a versatile work-horse that will suit a variety of applications, and is compact enough to do the smaller job around the farm.
Standard Features:
- 80 hp Daedong Diesel Engine
- Power Forward / Reverse Shuttle
- 24x24 Transmission
- European Designed Wet Clutch
- 4WD with Diff Lock
- Power Steering
- Auto Hydraulic Independent PTO
- Comfort Clutch (DeClutch)
Engine
Powerful, environmentally friendly, turbo charged, 80 hp CRDI Daedong diesel engine offers high output, low noise, low vibration and lower fuel consumption compared to competitors.

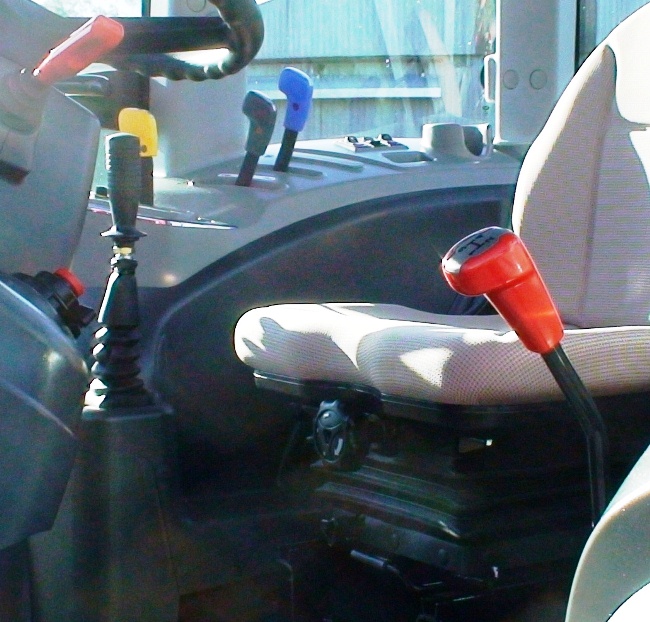

Transmission
The new PowerShuttle on the RX8030 provides smooth and easy shifting from forward to reverse without depressing the clutch pedal. The transmission features 24 forward and 24 reverse gears to handle all kinds of jobs. The RX8030 is perfect for long days working with a front end loader. Fully independent PTO with auto-stop function.

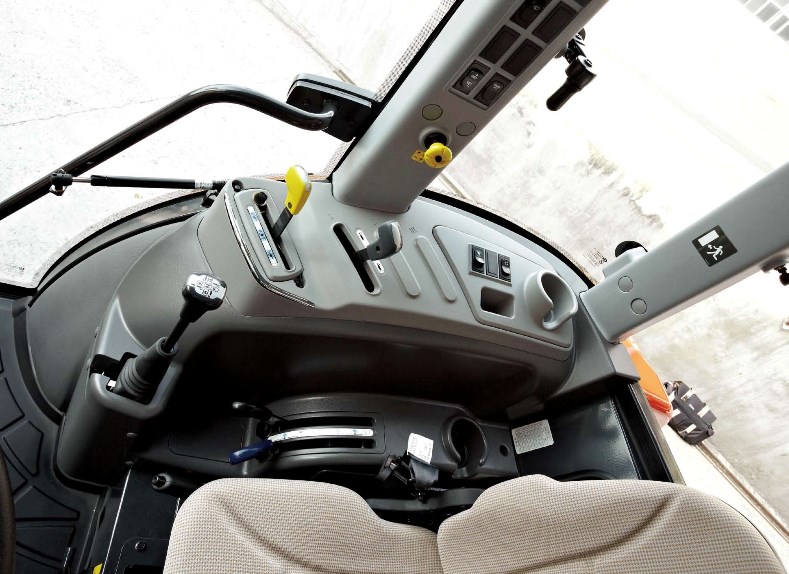

Operator Station
Kioti upgraded the interior of the new comfortable Luxury Cabin with a fully adjustable suspension seat right hand armrest, easy visible dash instruments and easy access to controls and buttons. Levers and buttons are colour coordinated for better distinction and safety. A step through platform provides easy access. Air Conditioning, heating and ventilation provides the extra comfort for the operator in tough New Zealand conditions. All RX models cabins are equipped with a Radio/CD player, cup holders and sunvisor.

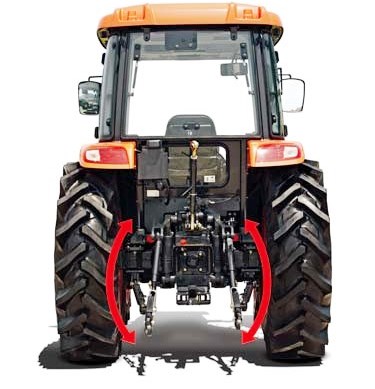

Hydraulics
Standard dual remote hydraulic valves accommodate a wide variety of attachments and implements. A mid-mount double acting valve and a single lever joystick for loader operations are standard on the RX series. The RX series tractor has two external hydraulic lift cylinders with a lift capacity of 2,256 kg.
Specifications
|
ENGINE |
BRAKES |
|
Daedong 4F243T-TPC3 CRDI |
Wet Disk |
|
Liquid Cooled 4 Cylinder Diesel Turbo |
|
|
2435cc Displacement |
OPERATOR ENVIRONMENT |
|
80HP @ 2600 rpm (Max hp) |
High Quality Fully Adjustable Seat |
|
95 Litre fuel Tank Capacity |
with Arm Rests and Backrest |
| Adjustable Steering Wheel and Instruments | |
|
TRANSMISSION |
Flat Operator Deck |
| Power Shuttle
|
|
| 4 Main Gear x 6 Range Gear Shift
|
CABIN |
| 24F X 24R Speed
|
Deluxe Cabin with A/C and Heating
|
| 4 Wheel Drive with Wet Multi Disk Engagement
|
Tinted Glass, CD Radio
|
|
|
Front and Rear Wipers
|
|
HYDRAULICS & LINKAGE |
Internal / External Air Exchanger Filters |
|
Implement Pump 41.6 lpm |
Refrigerator/ Heating Cabinet |
|
Power Steering Pump 31.2 lpm |
|
|
Total Hydraulic Flow 72.8 lpm |
TRAVEL SPEEDS |
|
Category 2 Three Point Linkage |
Forward 1.63 - 38.82kph |
|
Cassette Type Lower link |
Reverse 1.61 - 38.17kph |
|
2256kgs Maximium rear Lift Capacity |
|
|
Clevis Type Rear Draw Bar |
DIMENSIONS |
|
Standard 2 Pair Hydraulic rear remotes |
Overall Length inc 3PL 3480mm |
|
Hydraulic Power Steering |
Overall Width min tread 1960mm |
|
|
Overall Height (Cab) 2655mm |
|
POWER TAKE OFF |
|
|
Independent |
Wheelbase 2130mm |
|
540 / 750 rpm |
Ground Clearance 440mm |
|
SAE 1-3/8, 6 Spline |
Weight with Cab/ AG 2975kg |
|
|
|
|
TYRES |
|
|
Radial Tyre Front 280/85R24 |
|
|
Rear 420/85R30 |
|
|
|
|
|
MODELS |
|
|
RX8030 CAB |
|
|
|
|
|
OPTIONS |
|
|
KL705 Loader with 4 in 1 bucket |
Pallet Forks to fit KL1595 Loader |
|
Rear Counter Balance Weight Box 650kg |
Bale Forks to fit KL1595 Loader |
