CK4220 Cab
The new generation Kioti compact CK4220 Cab 42 hp diesel engine tractor comes with either manual or hydrostatic transmission. A maximum ground clearance of 340 mm makes usage on a rocky or uneven terrain simpler.
Standard features include:
- 4WD
- HST Transmission or 9x3 Transmission
- Twin Pedal (HST version)
- High Ground Clearance
- Power Steering
- Hydraulic Remotes (STD)
Engine
Innovative eco-friendly Daedong engine technology for high fuel efficiency and environmentally friendly with low levels of smoke, noise and vibration.

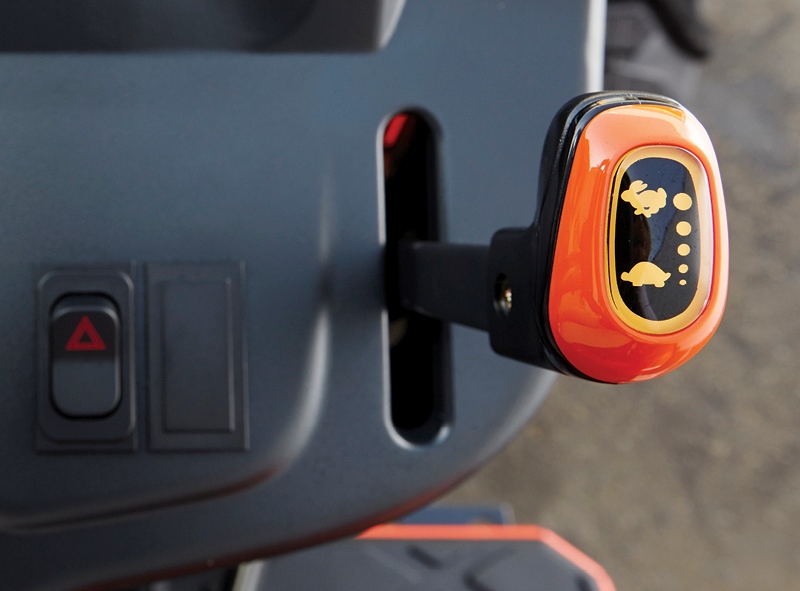

HST models feature performance proven, heavy-duty HST drives that deliver power and efficiency. The three range transmission, high, mid, low, and along with a twin pedal operation makes your job easier, smoother and safer.
HST models employ a two pedal system for forward and reverse with smooth engagement, acceleration and deceleration. Pedal pressure is minimized which reduces operator fatigue during long hours of use and when doing repetitive tasks.
Manual transmission models feature 9 Forward and 3 Reverse speeds delivering heavy-duty performance. Second and Reverse gears are synchronised for efficient forward and reverse operations requiring frequent shifting.
Operator Station
The standard power steering minimizes the effort required to make tight, repetitive turns. A single lever joystick and dual HST pedals are conveniently located for optimum operator comfort.
Specifications
| CK4220 HST | |
|---|---|
| ENGINE | BRAKES |
| Daedong 3B183LWM-E | Independent Oil Immersed Disc Brakes |
|
Liquid Cooled 3 Cylinder Diesel |
Cast Iron Transmission and Axle Housing |
| 1826cc Displacement | |
| 42hp @ 2800 RPM (Max hp) | OPERATOR ENVIRONMENT |
| 34 Litre Fuel Tank Capacity | Front Work Lights with Indicators/Brake Lights |
| Step Through Platform | |
| TRANSMISSION | Under Bonnet Muffler |
| 3 Range Hydrostatic Drive | Comfort Seat |
| Cruise Control | Deluxe A/C Cabin |
| 4 Wheel Drive | |
| Rear Differential Lock | TRAVEL SPEEDS |
| Infinite Speeds from 0-25 km/h F/R (HST) | |
| HYDRAULICS & LINKAGE | Speed Range 1.52-23.56 km/h (Manual) |
| Manual Linkage Control | DIMENSIONS |
| 44.4 l/min Total Flow | Overall Length 3070 mm |
| Category 1 Three Point Linkage | Overall Width 1400 mm |
| Draw Bar | Overall Height 2650 mm |
| 4 Hydraulic Remotes (2 Rear, 2 Front w/Joystick) | Wheelbase 1670 mm |
|
740kg Max Rear Lift Capacity 600mm Behind Lift |
Ground Clearance 340 mm |
| TYRES | WEIGHT |
| Industrial / Turf / Agricultural | 1200 kg |
