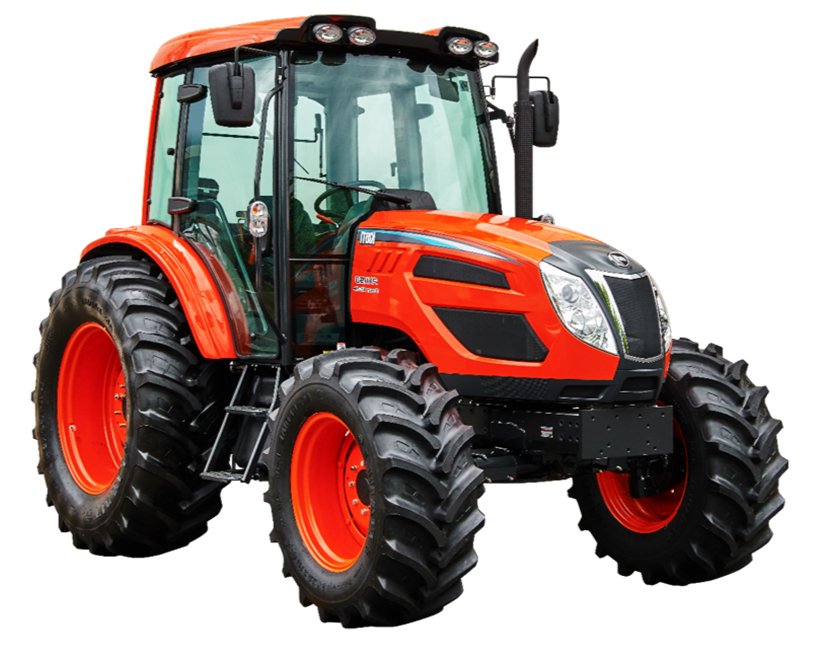

PX1153
This the all NEW PX1153 Power Shuttle Cabin tractor. This new tractor has evolved from the PX1052, and is now geared up to more serious work than ever before. Still, with the ever-dependable 4.4 L Perkins engine, the PX1153 received a full raft upgrade to make it Kioti’s most powerful ever seen in New Zealand. Now boasting a 115 hp engine, bigger hydraulic pumps, greater lifting capacities, heavier construction, new front end loader, bigger tyres, air seat and electronic rear linkage are just some of the reasons why this is going to be your choice of tractor to get serious work done around your farm.
Standard features:
- 115 Hp 4.4 L Perkins Intercooled turbo diesel engine.
- 32 x 32 Wet clutch transmission, with Hi/low ratio
- New main hydraulic implement pump, delivering 74.8 L/min and Total hydraulic flow of 121.3 L/min
- Electronic Linkage controls
- Air Suspension seat
- New wheels equipment…440/65R24 front, 540/65R34 rear
- Rear lift capacity 3630kg
- New HL1100 FEL with 4 in 1 Bucket
- Optional loader suspension
- Optional front fenders
Engine & Transmission
The heart of the PX1153, is a 115 Hp Perkins inter-cooled diesel engine. Perkins, a trusted and proven name delivers high output, low noise, low vibration and lower fuel consumption compared to some competitors.
The New PX1153 Power Shuttle features a 32 x 32 wet clutch transmission, configured by 4 gears, 4 ranges and a Hi/low power shift giving you a gear and speed specific for any task. It also features a declutch button and the main gear lever, enabling electronic clutching without having to use the clutch, reducing wear and simplifying operation.
Cabin and Operator Station
Upgrades to the Kioti PX1153, include a deluxe air suspension seat making a day cabin a lot more comfortable. The 6 posted cabin is credibly spacious, with a flat operator platform and tilt adjustable steering makes access in and out of the tractor very easy. Clear instrumentation and ergonomic layout of control and buttons with full Electronic Linkage Control now built into the right hand armrest. Air conditioning, heating and ventilation provides extra comfort for the operator in the New Zealand environment. A hot/cool box, able to heat or cool is standard equipment in the Kioti PX1153.
Hydraulics
The 3 point linkage of the Kioti PX1153 is Electronically controlled. With features like draft control, draft sensitivity Adjustment, lower speed adjustment, PTO disengagement position adjustment, maximum height control, reverse driving-linked lifting, and one touch linkage lift/lower control, working the land becomes a whole lot easier. A rear lift capacity of 3630 kg and the back of the tractor and 74.8 L/min hydraulic flow at the main implement pump means the machine is ready for some serious work.
Specifications
| ENGINE | BRAKES |
| Perkins 1104D-44TAG | Wet Disk |
| Liquid Cooled 4 Cylinder Diesel | |
| 4399cc Displacement | OPERATOR ENVIRONMENT |
| 115hp @ 2200rpm (max) | Deluxe Cabin with A/C and Heating |
| 120 Litre Fuel Tank Capacity | CD Radio |
| Dual Air Cleaner | Adjustable Steering Wheel and Instruments |
| High Quality Fully Adjustable Seat | |
| TRANSMISSION | with Arm Rests and Backrest |
| Synchro Mesh | Flat Operator Deck |
| Power Shuttle | Front and Rear Wipers |
| Push Button Hand Clutch | Internal/External Air Exchanger Filters |
| Wet Multi Disk Clutch | 12V Refrigerator |
| 32F x 32R Speed with Hydraulic High/Low | TRAVEL SPEEDS |
| Rear Differential Lock | Forward 0.65-39.64 kph |
| Reverse 0.65-39.37 kph | |
| HYDRAULICS & LINKAGE | |
| Main Pump Capacity - 78.4 lpm | DIMENSIONS |
| Steering Pump Capacity - 46.5 lpm | Overall Length incl. 3PL 4120mm |
| Total Maximum Flow - 121.3 lpm | Overall Width Minimum Tread 2293mm |
| 3630kgs Maximum Rear Linkage Lift Capacity | Overall Height (Cabin) 2750mm |
| Power Steering | |
| Category 2 Three Point Linkage | Wheelbase 2305mm |
| Position, Draft, Mixed Control Lift System | Ground Clearance 475mm |
| 4 Rear Remote Outlets | |
| Clevis Type Rear Draw Bar | Weight Cabin/AG 3615kgs |
| POWER TAKE OFF | TYRES |
| Independent 540/1000 PTO | Ag Tyre Front 440/65R24 |
| Auto PTO | Rear 540/65R34 |
| OPTIONS | |
*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
