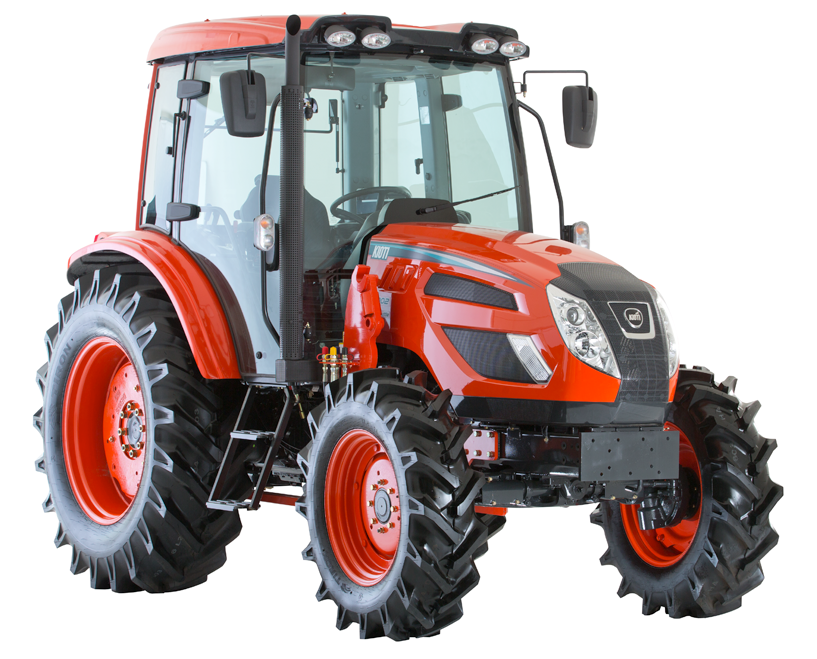

PX1052 Cab
The PX1052 with a weight of 4 tonne, is designed for serious farming and is the ideal tractor for front-end loader work. With a large 120 litre fuel tank and a fuel-efficient engine, the PX is able to work a long time between fuel breaks. Equipped with hydrostatic power steering, the PX provides smooth responsive steering that requires minimal operator effort and is ideal for loader work.
Standard features:
- 105 hp Diesel Engine
- Power Forward / Reverse Shuttle
- 32 x 32 Transmission
- Hydr Push Button Hi/Low
- European Designed Wet Clutch
- 4WD with Diff Lock
- Power Steering
- Auto Hydraulic Independent PT
- Comfort Clutch (DeClutch)

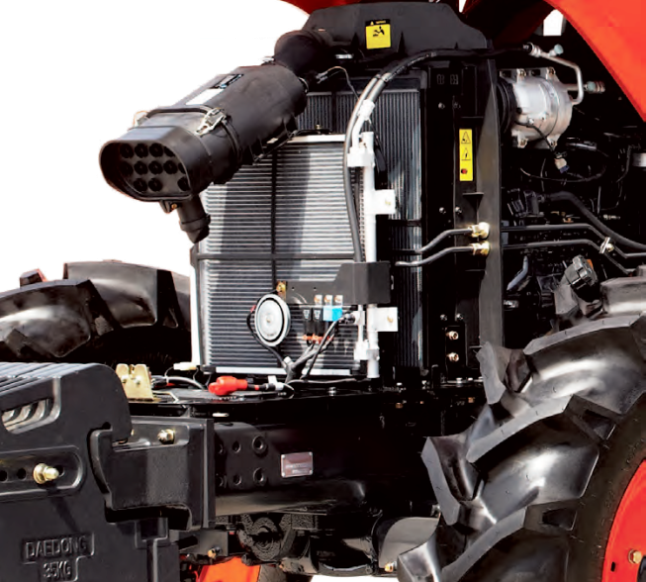

Engine & Transmission
Powerful, environmentally friendly, 100 hp Perkins diesel engines offer high output, low noise, low vibration and lower fuel consumption compared to competitors.

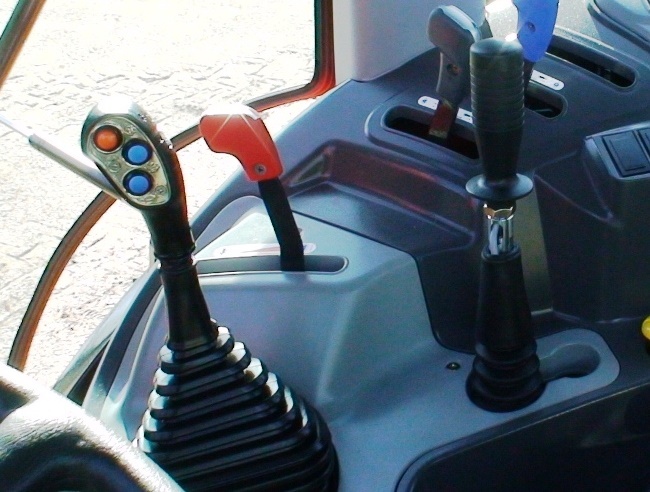

The new PowerShuttle on the PX1002 provides smooth and easy shifting from forward to reverse without depressing the clutch pedal. The newly designed transmission features 36 forward and 36 reverse gears to handle all kinds of jobs. The Hi-Low ranges and gears can be changed by simply pushing the HI/LOW buttons and clutch button on the main gear leaver without depressing the clutch pedal. The 2 speed PTO 540/1000 with auto-stop function is standard on all PX models.

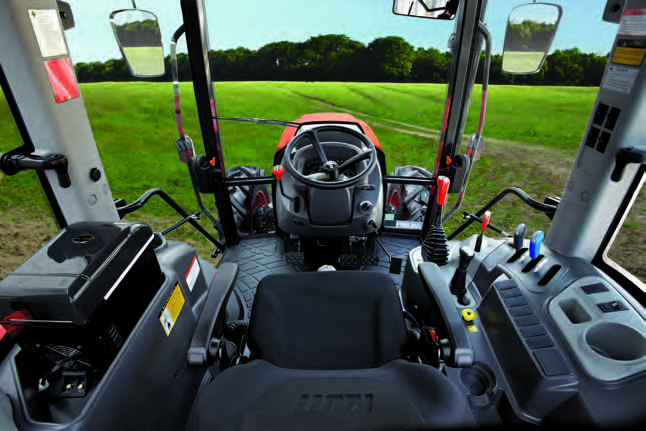

Operator Station
Kioti upgraded the interior of the new comfortable Luxury Cabin with a fully adjustable suspension seat right hand armrest, easy visible dash instruments and easy access to controls and buttons. Levers and buttons are colour coordinated for better distinction and safety. Air Conditioning, heating and ventilation provides the extra comfort for the operator in tough New Zealand conditions. Cab models are equipped with a Radio / CD player, cup holders and sunvisor.

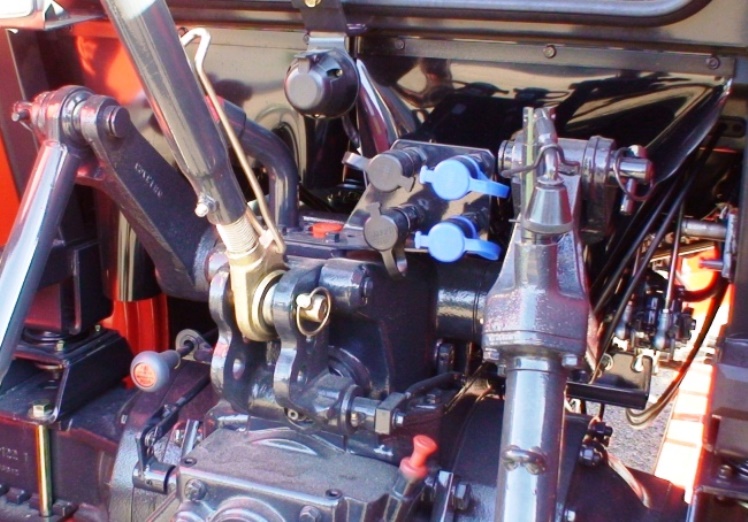

Hydraulic System
Standard dual remote hydraulic valves accommodate a wide variety of attachments and implements. A mid-mount double acting valve and a single lever joystick for loader operations are standard on the PX series. The PX series has a lift capacity of 2,400 kg.
Specifications
| ENGINE | BRAKES |
| Perkins 1104C-44TTT | Wet Disk |
| Liquid Cooled 4 Cylinder Diesel | |
| 4399cc Displacement | OPERATOR ENVIRONMENT |
| 105hp @ 2400rpm (max) | Deluxe Cabin with A/C and Heating |
| 120 Litre Fuel Tank Capacity | CD Radio |
| Dual Air Cleaner | Adjustable Steering Wheel and Instruments |
| High Quality Fully Adjustable Seat | |
| TRANSMISSION | with Arm Rests and Backrest |
| Synchro Mesh | Flat Operator Deck |
| Power Shuttle | Front and Rear Wipers |
| Push Button Hand Clutch | Internal/External Air Exchanger Filters |
| Wet Multi Disk Clutch | |
| 32F x 32R Speed with Hydraulic High/Low | TRAVEL SPEEDS |
| Rear Differential Lock | Forward 0.82-38.36 kph |
| Reverse 0.80-37.33 kph | |
| HYDRAULICS & LINKAGE | |
| Main Pump Capacity - 48.4 lpm | DIMENSIONS |
| Steering Pump Capacity - 30.8lpm | Overall Length incl. 3PL 4120mm |
| Total Maximum Flow - 79.2 lpm | Overall Width Minimum Tread 2000mm |
| 2400kgs Maximum Rear Linkage Lift Capacity | Overall Height (Cabin) 2820mm |
| Power Steering | |
| Category 2 Three Point Linkage | Wheelbase 2305mm |
| Position, Draft, Mixed Control Lift System | Ground Clearance 475mm |
| 4 Rear Remote Outlets | |
| Clevis Type Rear Draw Bar | Weight Cabin/AG 3615kgs |
| POWER TAKE OFF | TYRES |
| Independent 540/1000 PTO | Ag Tyre Front 12.4-24.8PR |
| Auto PTO | Rear 18.4-34.8PR |
| OPTIONS | |
| KL901 Loader with 4in1 Bucket | |
| Rear Counter Balance Weight Box 1000kg |
*This information is sourced from overseas therefore it might not apply locally. Please contact your nearest dealer to confirm specifications and other information.
